Product Description
-
Using CAT.5 network patch cords support power for the wireless AP and IP camera
-
Networking standard: IEEE802.3af/at/bt
-
PoE Watchdog AI Function: Detection front-end PoE cameras and PD, Automatic detection, Automatic restart
-
Upload port automatic flip (Auto MDI/MDIX)
-
Network performance: Store-and-forward
-
Intelligent power distribution and secure power supply system
-
The port power is 60 watts, it is convenient for high-power device
-
Zero configuration feature power supply is automatically supplied to the adaptive equipment
Product Specification

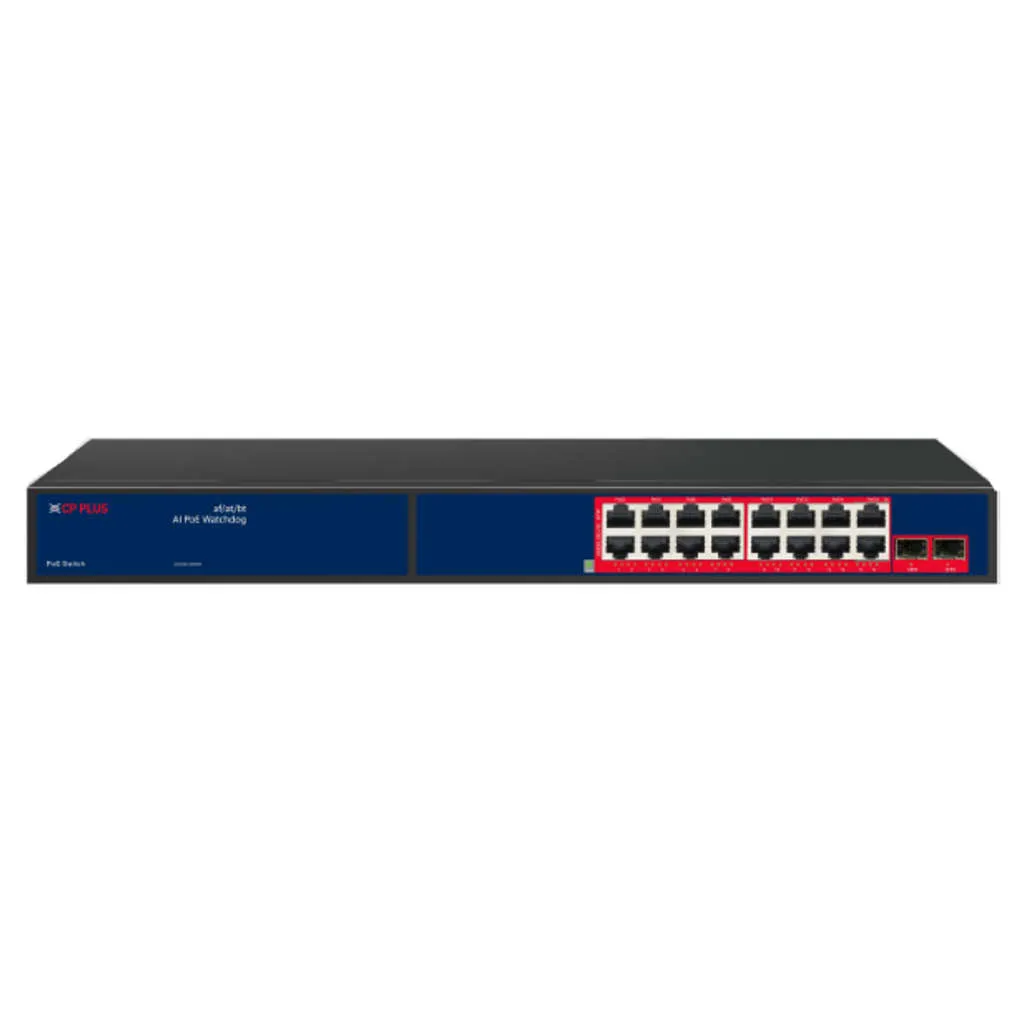

| Brand | CP Plus |
| Product Type | PoE Switch |
| Product Model | CP-ANW-GPU16F2-N30 |
| PoE Ports | 16 PoE Ports |
| Network Port | 16 Gigabit Port: 10/100/1000Mbps PoE ports, BT port, Compatible uplink ports (RJ45) |
| PoE Standard | IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX/IEEE 802.3ab 1000 Base-T IEEE 802.3xFlowControl IEEE 802.3af/at/bt Power over Ethernet |
| PoE Power Budget | 300W |
| Transmission Distance | 1~100m |
| Network Latency
| (10 to 1000Mbps): ≤16μs (use the 64byte package size) |
| Lightning Protection | 6KV |
| Electricity Protection | 12KV |
| Switch Capacity | 36.0 Gbps |
| MAC Address List | 8K |
| Power Source | AC 180~240V, Total ≤300W |
| Operating Temperature | -30°C ~ 60°C |
| Humidity | 10%~ 90% (Non-condensing) |
| Dimension | 430mm(L) x 180mm(W) x 45mm(H) |
| Warranty | 2 Years |
Other Details
| Dimension (CM) - L x B x H | 43x18x4.5 |
| Unit of Measurement | 1 Piece |
| Weight | 2.5 kg |
| Generic Type | POE Switches |
| Manufacturer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Packer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Country of Origin | India |
