CyberPower CST135XLU 1350VA/810W AVR, LCD, and USB 2.0 UPS System
Description

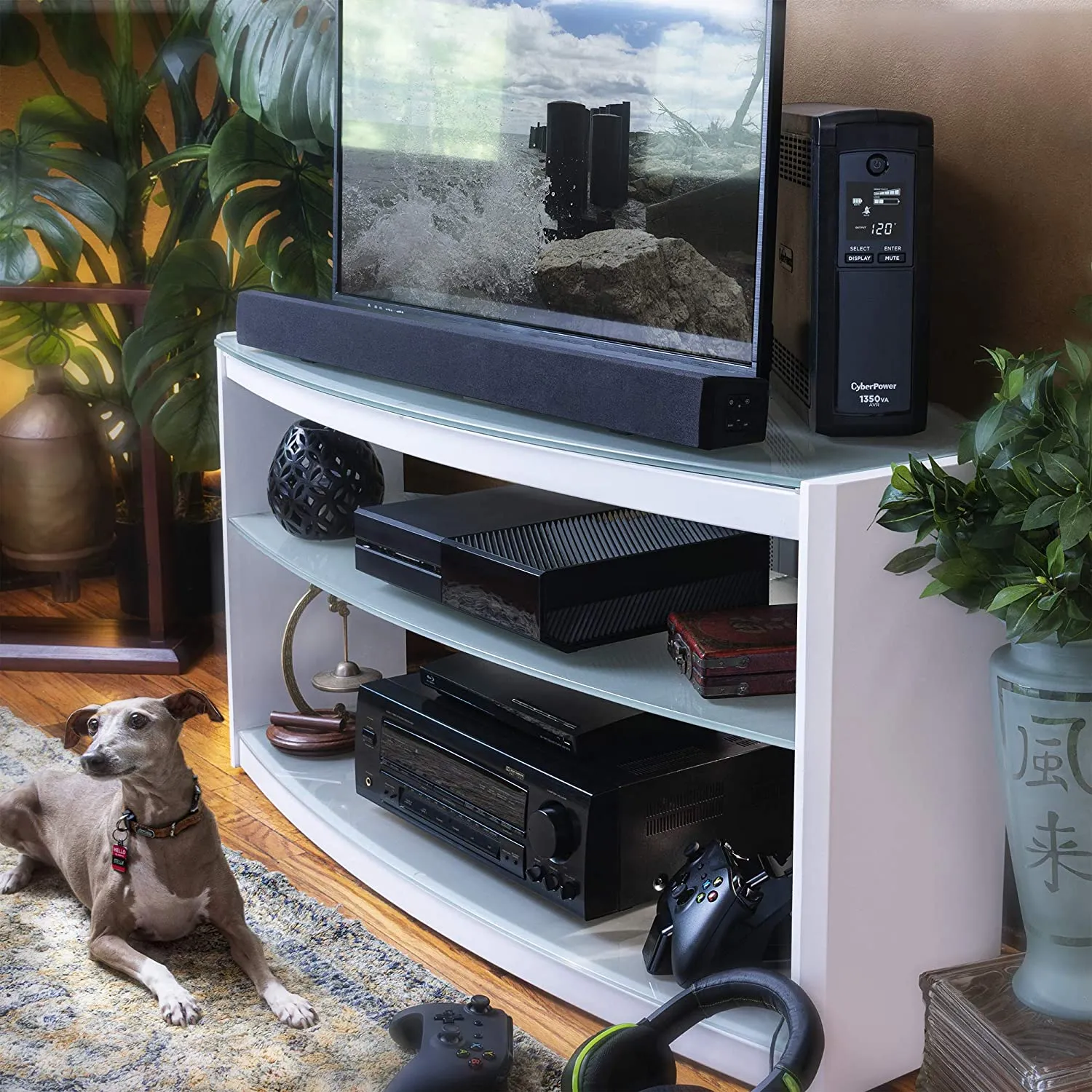

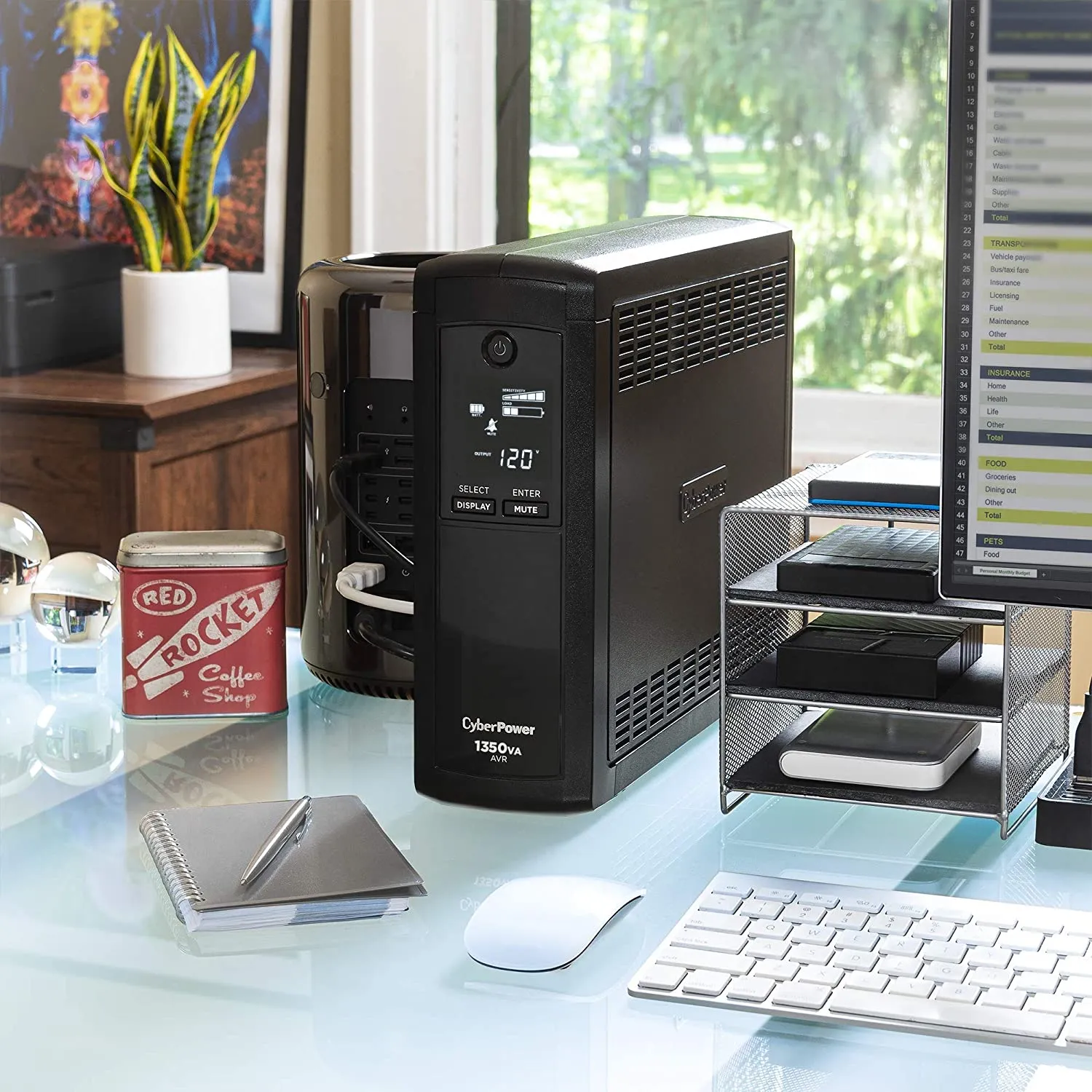

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CST135XLU provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CST135XLU uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.Two USB charge ports (2.1 Amp shared) rapidly power portable devices such as mobile phones, MP3 players, and cameras.Features
- 1350 VA / 810 W
- Line Interactive
- Simulated Sine Wave
- 120 VAC ± 5% Output

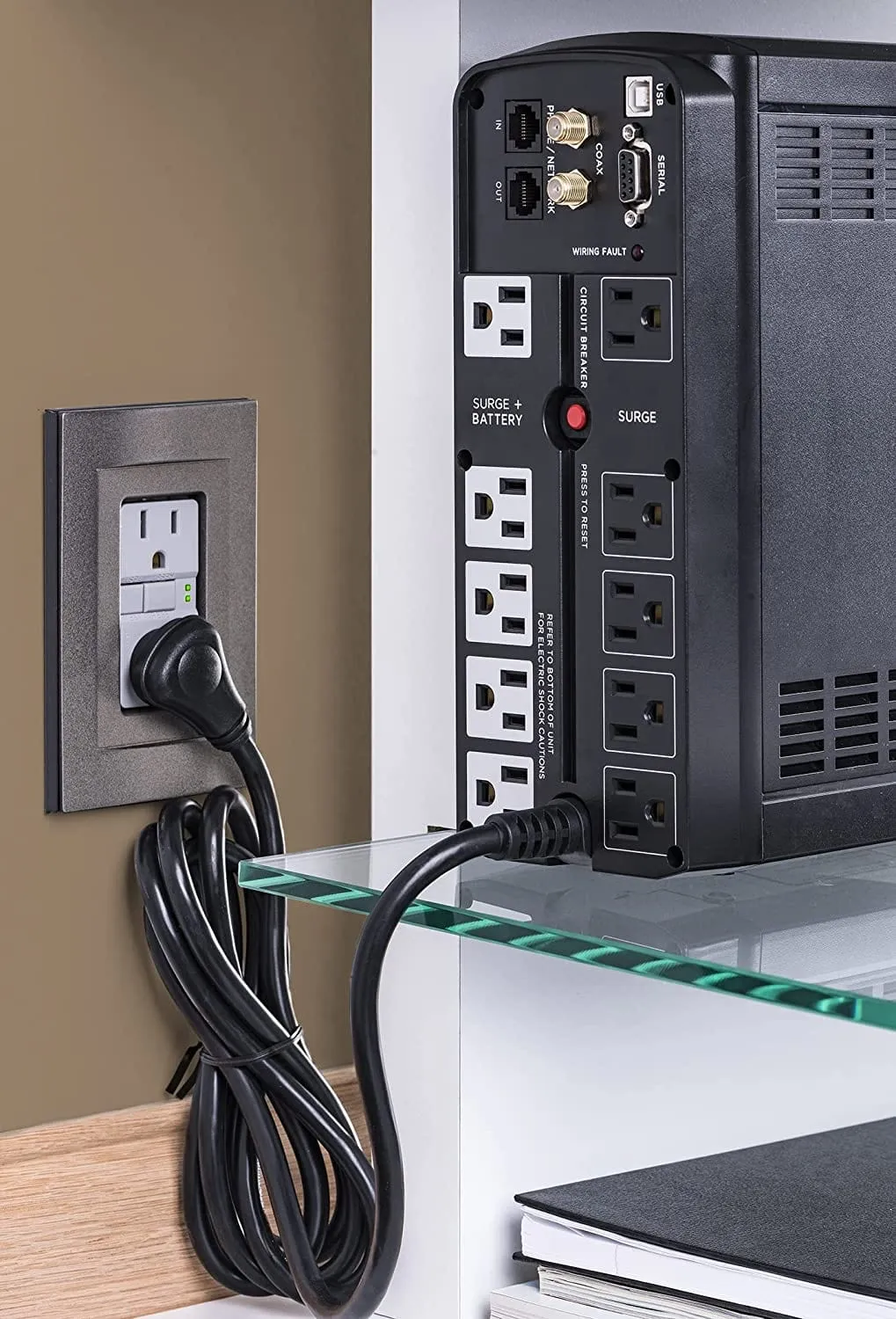

- Plug type & cord: NEMA 5-15P, 6 ft. cord
- 10 × NEMA 5-15R Outlets
- 2 (2.1A shared) USB charge ports
Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Data Line Protection
Prevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics.
Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically regulating low voltages and over voltages, within defined tolerances, when incoming utility power has minor fluctuations.
Simulated Sine Wave Output
Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
USB Charge Ports
Rapidly charge and power USB devices such as tablets (including iPad), smartphones, MP3 players, and other mobile accessories.
GreenPower UPS™ Bypass Design
Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

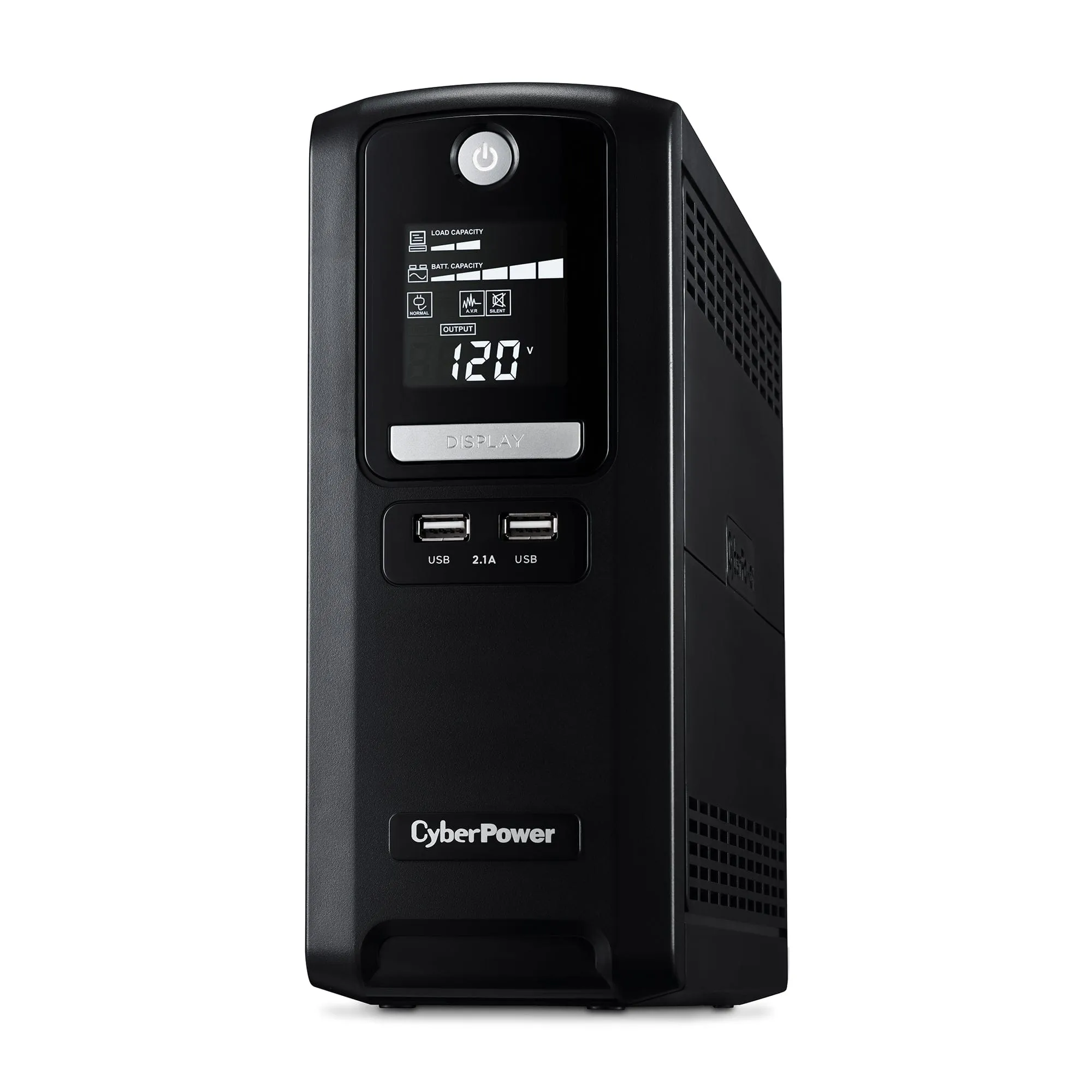

Multifunction LCD Panel
Displays immediate, detailed information on the battery backup and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
Ultra Quiet Design
Minimizes noise during operation for a quieter work environment.
PowerPanel® Personal Edition Software
Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available. See the Resources tab.
ENERGY STAR
This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
Specifications
| General | |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Energy Star Certified | Yes |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 2 |
| Battery Size | 12 V / 7 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Hot Swappable | No |
| Replacement Battery Cartridge | RB1270X2C |
| Runtime at Full Load | 2 min |
| Runtime at Half Load | 10 min |
| Typical Recharge Time | 8 Hours |
| User Replaceable Battery | Yes |
| Input | |
| Circuit Breaker | 15 A |
| Cord Length | 6 ft (1.8 m) |
| Input Frequency Range | 57 Hz – 63 Hz |

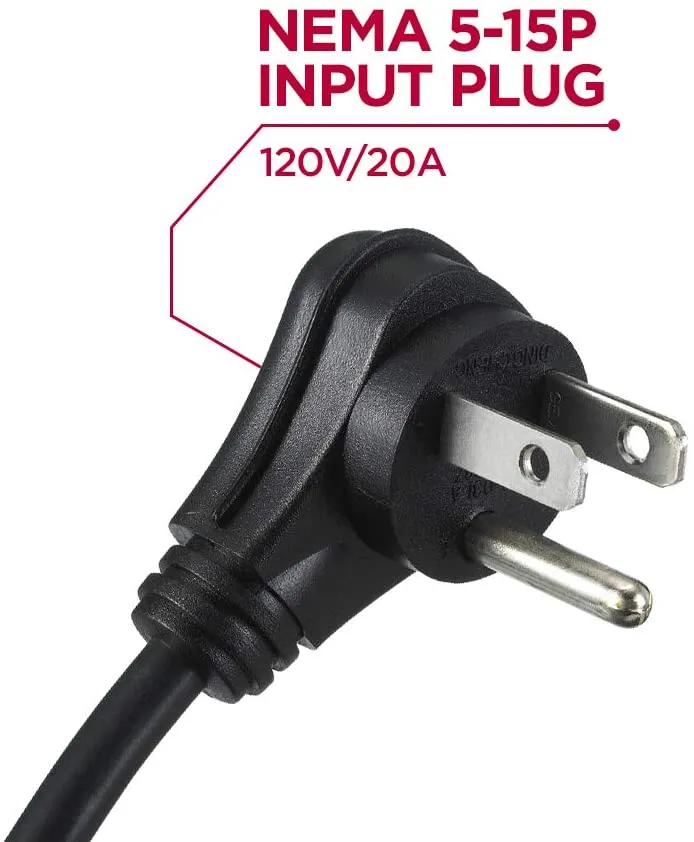

| Input Plug Type | NEMA 5-15P |
| Input Voltage Range | 90 VAC – 142 VAC |
| Nominal Input Voltage | 120 VAC |
| Output | |
| Automatic Voltage Regulation | Single Boost |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Simulated Sine Wave |

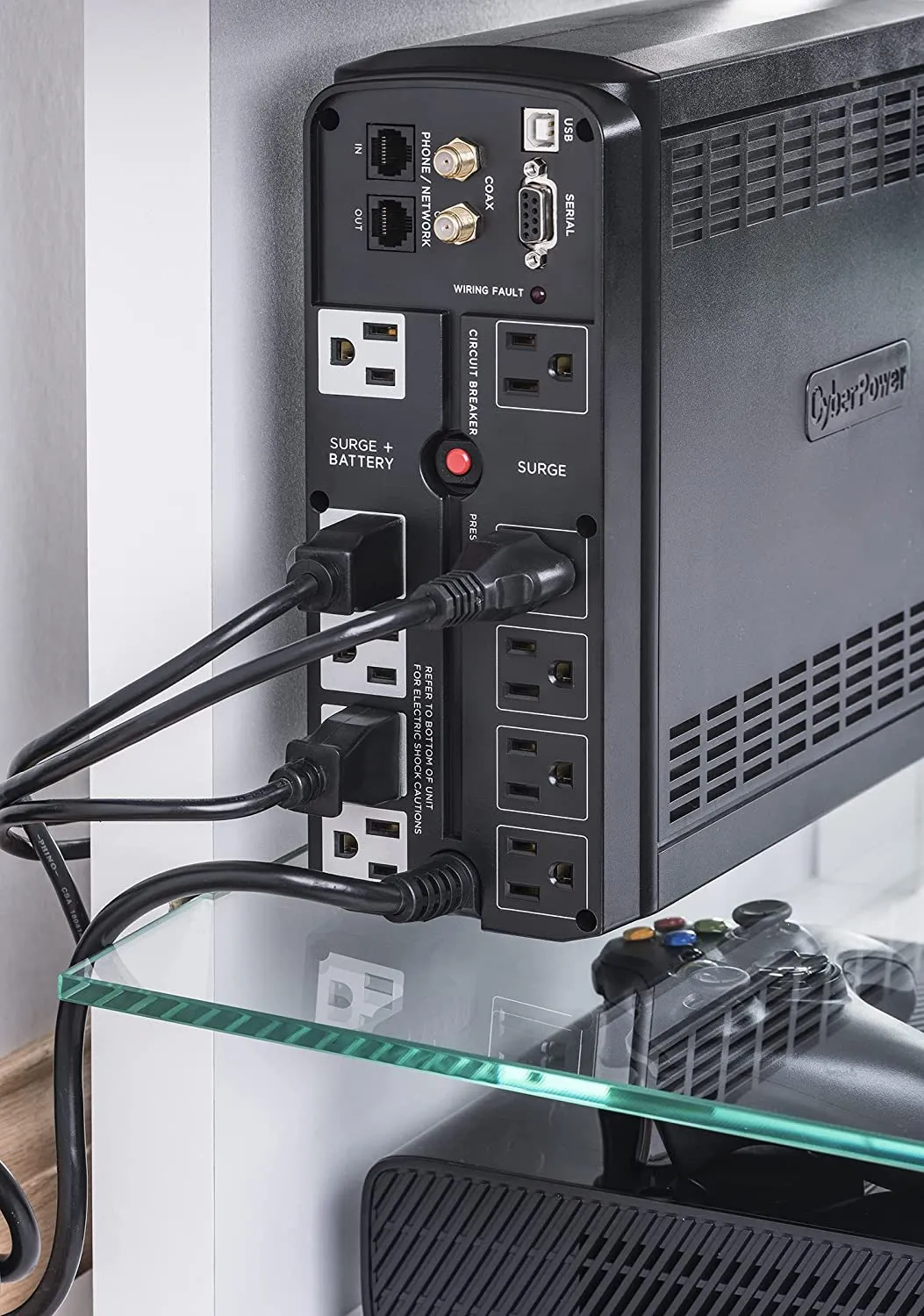

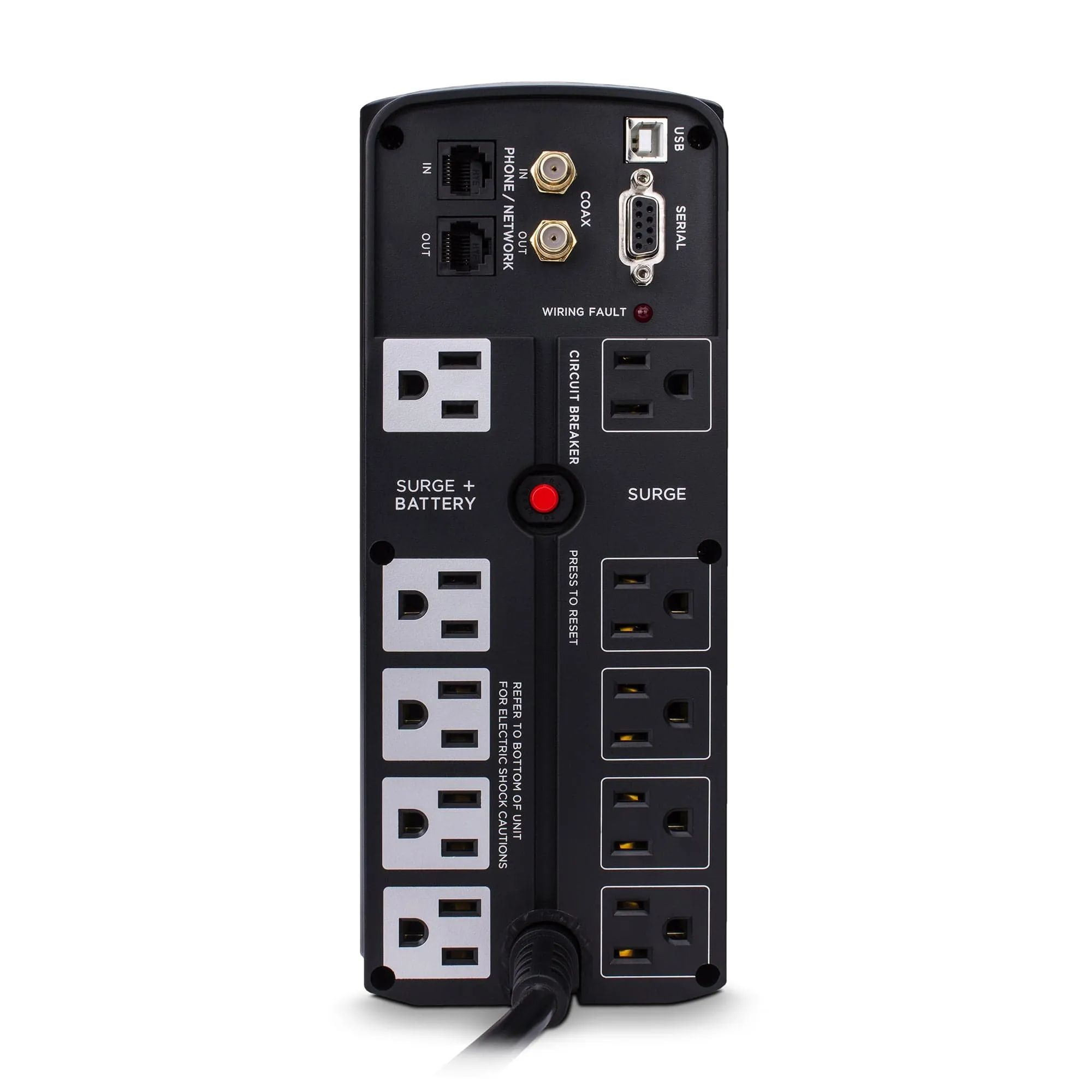

| Outlet Type | 10 – NEMA 5-15R |
| Outlets – Battery & Surge Protected | 5 |
| Outlets – Surge-Only Protected | 5 |
| Outlets – Total | 10 |
| Output Power Factor | 0.6 |
| Overload Protection | Internal Circuitry Limiting |
| Circuit Breaker Protected | |
| Typical Transfer Time | 4 ms |
| USB Charge Port | Yes |
| USB Charge Port Amperage | 2.1 Amps (Shared) |
| USB Charge Port Quantity | 2 |
| USB Charge Port Standard | Type A |
| USB Charge Port Type | 2 Type A |
| USB Charge Port Voltage | 5 VDC |
| Under/Over-Voltage Correction | 10% |
| VA | 1350 VA |
| Watts | 810 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Phone / Network Protection RJ11/RJ45 | 1-In / 1-Out (Combo) |
| Surge Suppression (Joules) | 1500 J |
| Management & Communications | |
| Audible Alarms | Battery Mode |
| Low Battery | |
| Overload | |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On |
| Wiring Fault | |
| Management Cable | USB Cable |
| Serial Port | 1 Serial |
| Software (Free Download) | PowerPanel® Personal |
| Physical | |
| Color | Black |
| Form Factor | Mini-Tower |
| Material of Construction | Plastic |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 9.91 x 24.64 x 25.91 (cm) |
| Physical Dimensions – (WxHxD) (in) | 3.9 x 9.7 x 10.2 (in) |
| Physical Dimensions – (WxHxD) (mm) | 99 x 246 x 259 (mm) |
| Physical Weight (kg) | 10.43 |
| Physical Weight (lb) | 23 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 8.05 |
| Shipping – Weight (lb) | 17.75 |
| Shipping Dimensions – (WxHxD) (cm) | 18.11 x 32.72 x 43.18 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 7.13 x 12.88 x 17.0 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 181.1 x 327.15 x 431.8 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 90 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1778 |
