Product Details
＋
Note: Minimum quantity order is two (2) pieces
Item Description

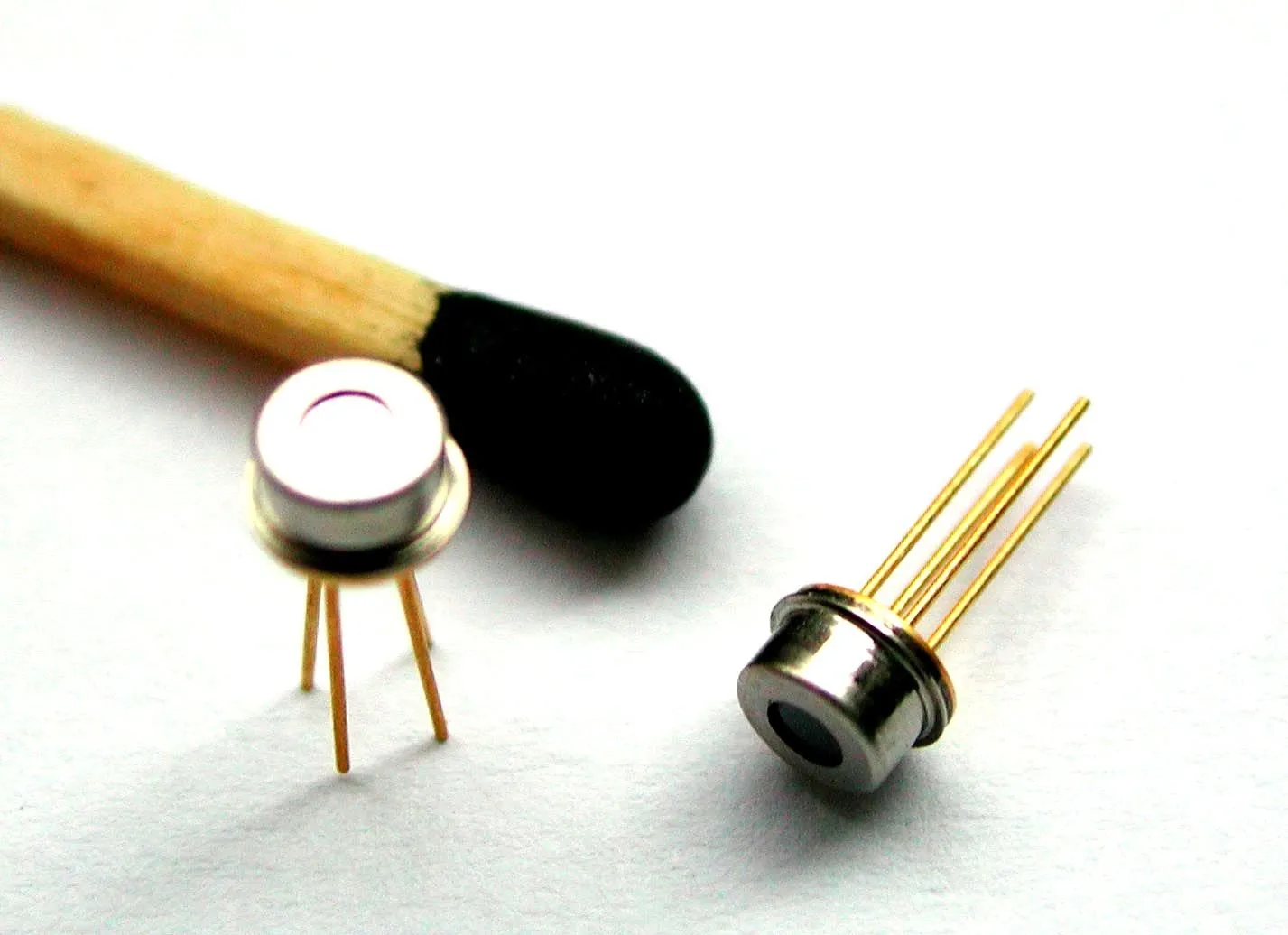

The HMS J21 F-8-14 Miniature Thermopile Sensor, with a 8-14 um bandpass window, is ideal for higher temperature or longer distance measurements.
The HMS Series of CMOS compatible thermopile sensor chips in TO46 (or TO18) and even smaller transistor housings, features good sensitivity, small temperature coefficient of sensitivity as well as high reproducibility and reliability. The smaller package sizes benefit applications in which sensor mounting is a critical parameter.
Product Technical Specs
- Summary product specifications are below
- View and download the detailed product sheet at the Download PDF tab
- Please contact us with any questions for or assistance via our or at 617-566-3821
| Element Size | 1.2 mm2 |
| Sensitivity | 27 V/W |
| Detectivity | 8.7 E7 cm Hz1/2 / W |
| Time Constant | 10 ms |
| Window/Filter | 8-14 um bandpass |
| FOV | 120 degrees |
| Package | TO-46 |
