Product Details
＋
Set of five (5)
Item Description

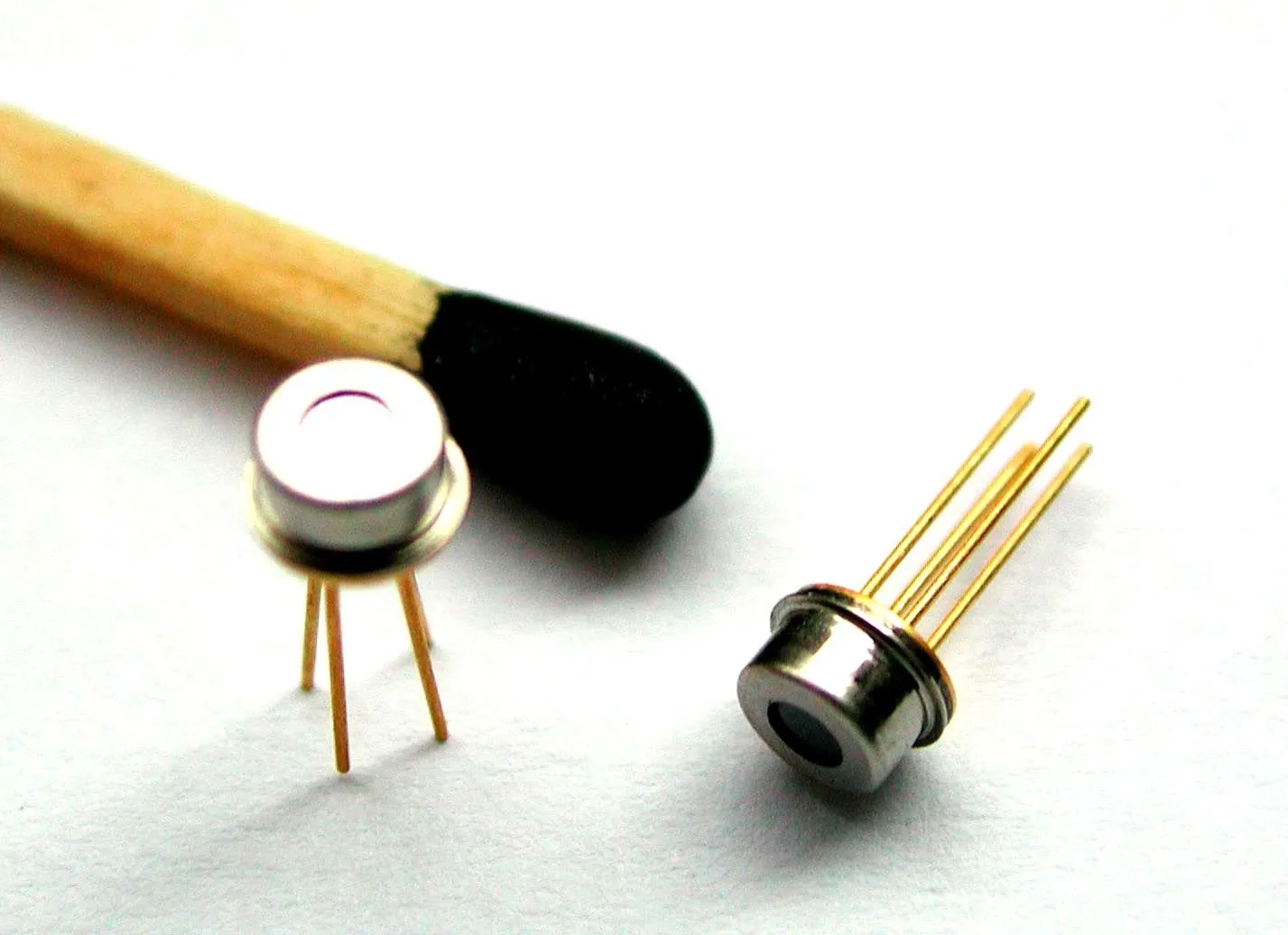

The HMS J21 F3.91 Miniature Thermopile Sensor is ideal for gas sensing, with a 3.91 um filter for using as a reference channel.
The HMS Series of CMOS compatible thermopile sensor chips in TO46 (or TO18) and even smaller transistor housings, features good sensitivity, small temperature coefficient of sensitivity as well as high reproducibility and reliability. The smaller package sizes benefit applications in which sensor mounting is a critical parameter.
Product Technical Specs
- Summary product specifications are below
- View and download the detailed product sheet at the Download PDF tab
- Please contact us with any questions for or assistance via our or at 617-566-3821
| Element Size | 1.2 mm2 |
| Sensitivity | 27 V/W |
| Detectivity | 8.7 E7 cm Hz1/2 / W |
| Time Constant | 10 ms |
| Filter | 3.91 um (reference) |
| FOV | 120 degrees |
| Package | TO-46 |
