Product Details
＋
Item Description
Set of five (5) sensors

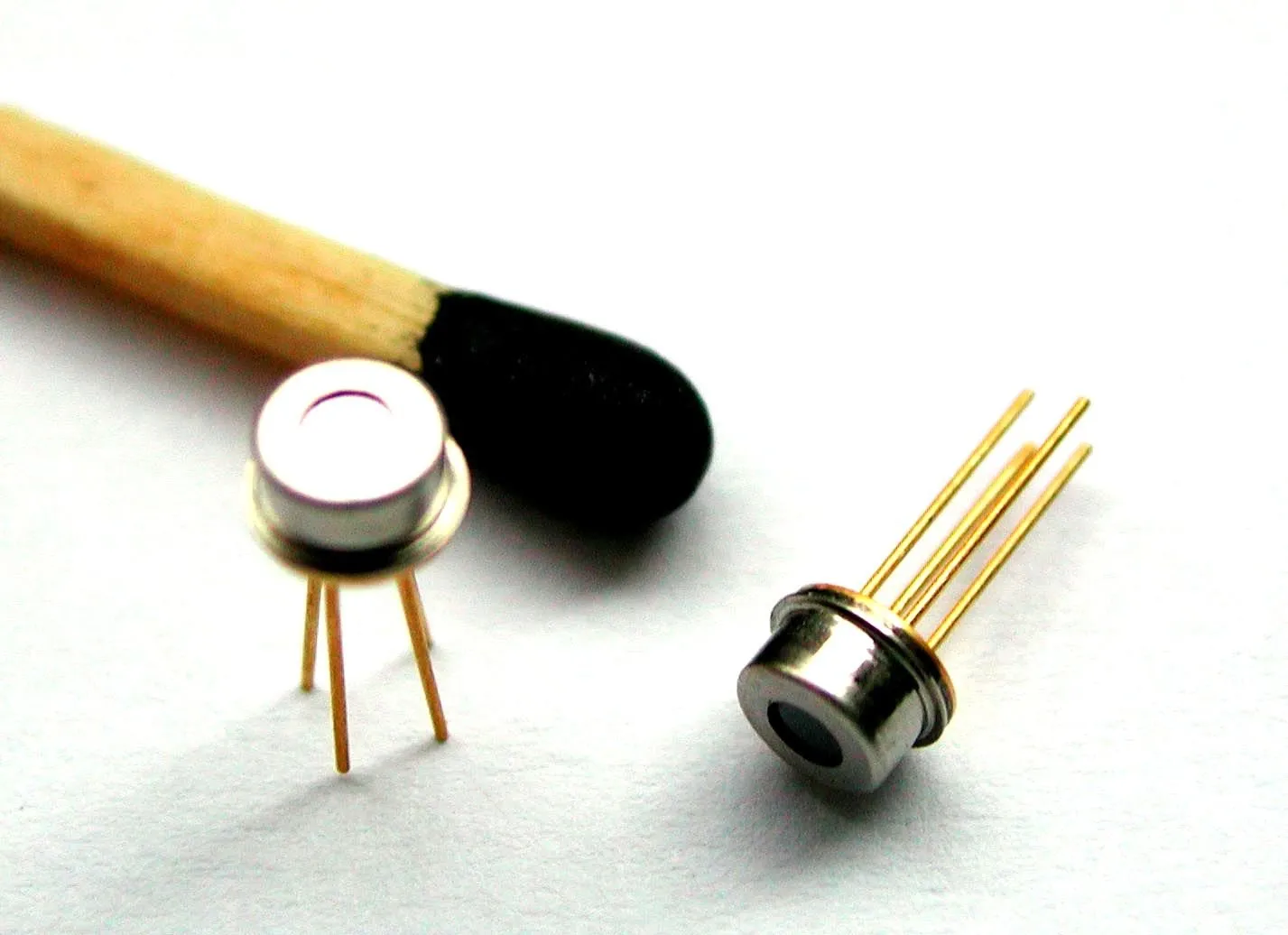

The HMS Z11 F5.5 Miniature Thermopile Sensor is ideal for temperature measurements (medium to higher temperatures).
The HMS Series of CMOS compatible thermopile sensor chips in TO46 (or TO18) and even smaller transistor housings, features good sensitivity, small temperature coefficient of sensitivity as well as high reproducibility and reliability. The smaller package sizes benefit applications in which sensor mounting is a critical parameter.
These low cost HMS Z11 F5.5 thermopile detectors are sold in a set of five.
Product Technical Specs
- Summary product specifications are below
- View and download the detailed product sheet at the Download PDF tab
- Please contact us with any questions for or assistance via our or at 617-566-3821
| Element Size | 0.61 mm2 |
| Sensitivity | 36 V/W |
| Detectivity | 5.6 E7 cm Hz1/2 / W |
| Time Constant | < 6 ms |
| Filter | 5.5 um cut on, long pass |
| FOV | 95 degrees |
| Package | TO-46 |
