Product Details
＋
Item Description

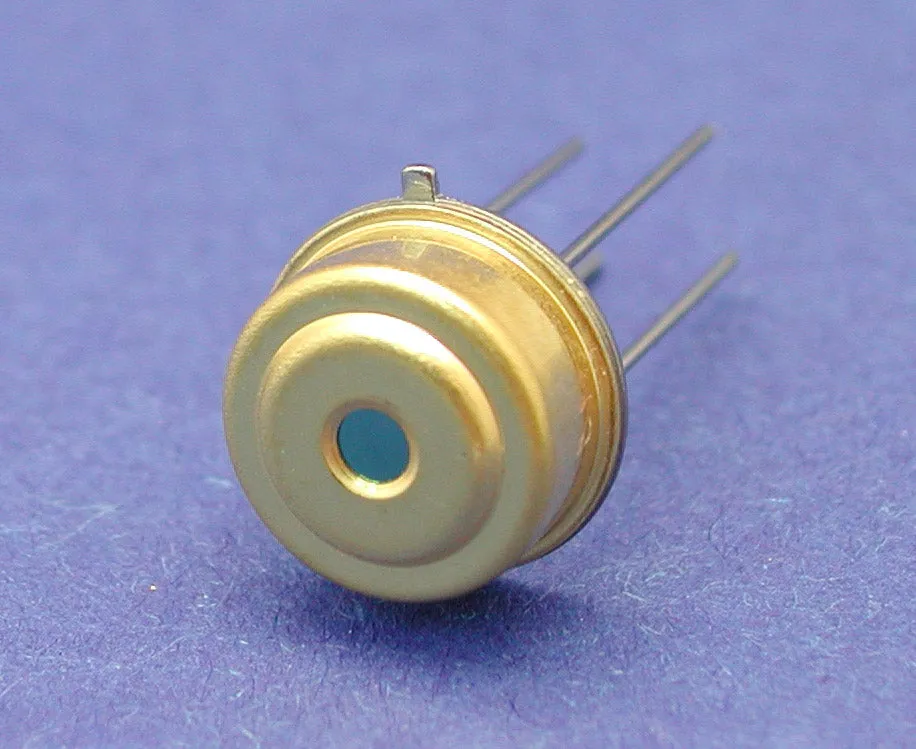

The HTS A11 F-8-14 Miniature Thermopile Sensor, with a 8-14 um bandpass window, is ideal for higher temperature or longer distance measurements.
The HTS Series of CMOS compatible thermopile sensor chips in TO39 size transistor housing features good sensitivity, small temperature coefficient of sensitivity as well as high reproducibility and reliability. The small chip is well suited for temperature measurements which require a precise measuring spot.
Product Technical Specs
- Summary product specifications are below
- View and download the detailed product sheet at the Download PDF tab
- Please contact us with any questions for or assistance via our or at 617-566-3821
| Element Size | 0.61 mm2 |
| Sensitivity | 36 V/W |
| Detectivity | 5.6 E7 cm Hz1/2 / W |
| Time Constant | 6 ms |
| Window/Filter | 8-14 um bandpass |
| FOV | 70 degrees |
| Package | TO-39 |
