Specifications

System Type: 15" Powered Loudspeaker

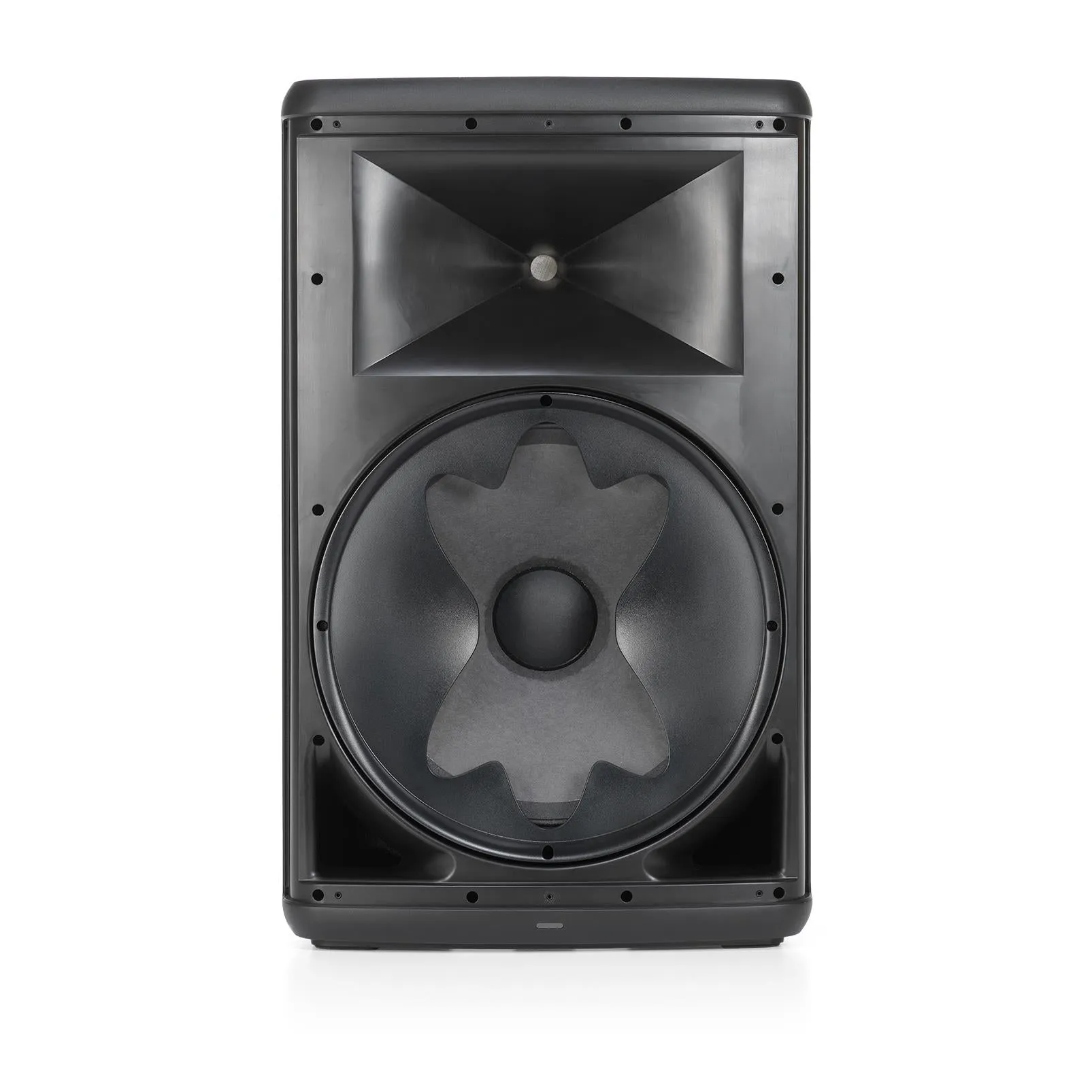

Woofer Size 15"
Woofer Magnet: Ferrite
Woofer Voice Coil: 2"
Tweeter Model: 2414H Compression Driver
Tweeter Size: 1''
Tweeter Magnet: Neodymium
Transducer Impedence: LF 4ohm rated, HF 8ohm rated
Max SPL: 128dB @1m/4Pi
Freq Range: -10 45Hz - 20kHz
Freq Range: -3 55Hz - 20kHz
Hor Dispersion: 90°
Vert Dispersion: 60°
Power Rating: 1300W peak / 650 RMS
AC power input: 100V-120V or 220V-240V
Cooling: Passive
LED indicators: 1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs
Input Impedance: 50k/100k un-balanced/balanced
Input Gain: -∞to 36db
Crossover Frequency: 1.9 kHz

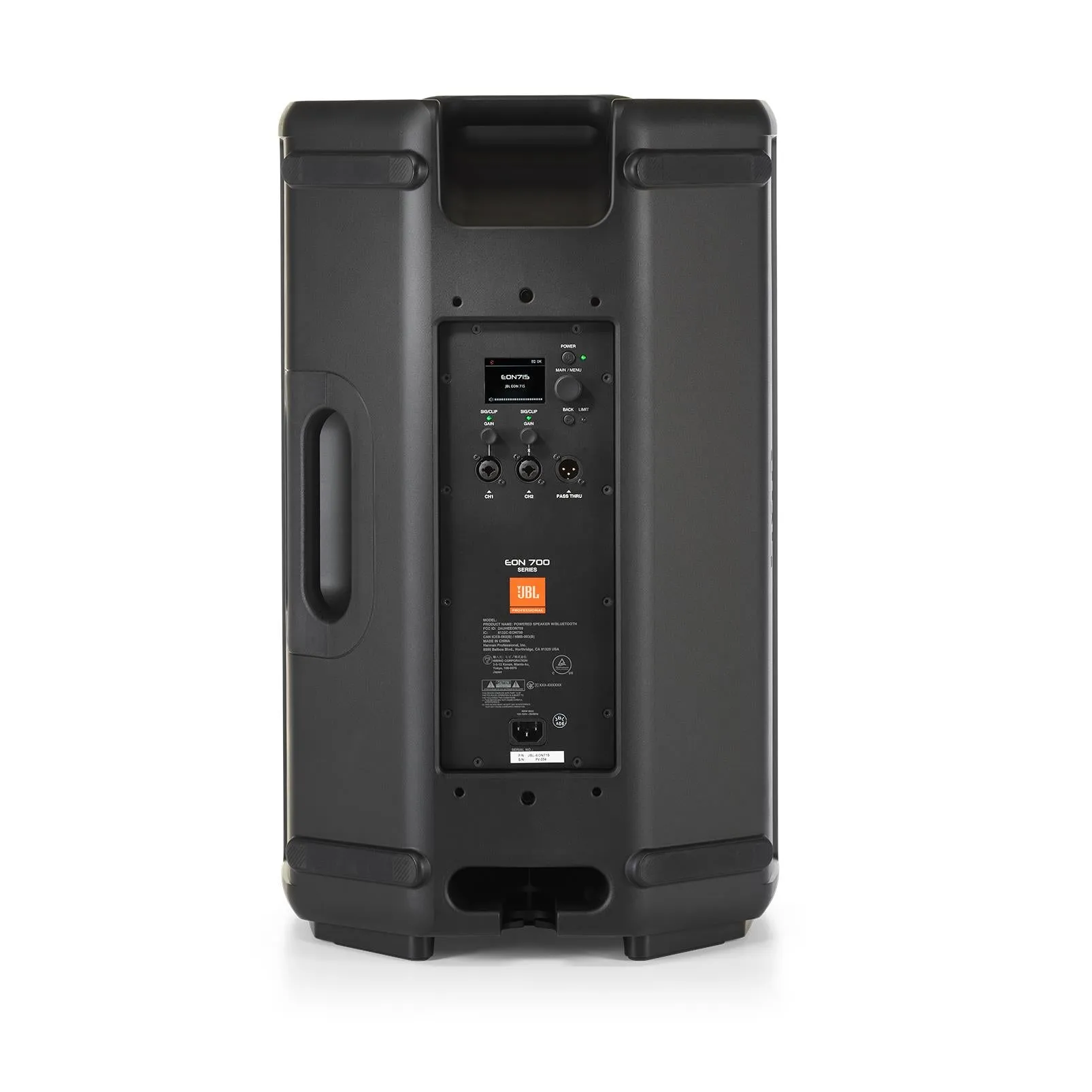

I/O: 2 XLR Combo Jacks / BT, 1 XLR M Thru
Cabinet: PP 10% Talc
Grille: 16GA perforated steel with acoustically transparent black cloth backing
Suspension / Mounting: 4 M10 Suspension points, 36mm Pole Socket, universal yoke bracket holes
Handles: 2, cable channel on bottom
Net Weight: 17kg
Gross Weight: 21.5kg
Product Dimensions HxWxL: 716x438x358mm
