Product Details

Move freely on stage while the perfect monitor mix is delivered directly to your ears. U500® In-Ear Monitoring Systems feature 96 selectable channels and 2, 10 or 30 mW switchable RF output power for a transmission range greater than 100 m. Convenient infrared synchronisation of transmitter and receiver permits quick and trouble-free setup. The systems come with high-contrast OLED information displays and allow for individual user name assignment. In addition, you can save 10 custom presets. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear Systems' noise floor is exceptionally low.

Drawing little current only, the U500® IEM Bodypack Receiver operates up to 10 hours on two AA batteries. A volume control allows convenient in-performance monitoring level adjustment. Three selectable squelch levels ensure interference-free operation at all times.

Features

  • Reliable in-ear monitoring with more than 100 m range
  • 96 available channels
  • 2, 10 or 30 mW ERP selectable transmission power
  • Convenient infrared frequency syncing
  • Individual user name assignment and memory for 10 custom presets
  • Extended frequency response
  • 3-band EQ with parametric mids
  • Switchable limiter
  • Stereo and mono modes of operation
  • High-contrast OLED display
  • Transmitter with direct monitoring headphone output
  • Bodypack receiver with three selectable squelch levels
  • 10 h of bodypack receiver operation on two AA batteries
  • U500® IEM transmitter compatible with U300® IEM bodypacks

Specifications

  • Product type In-ear Monitoring Accessories
  • Type Receivers
  • Transmission frequency range 514 - 542 MHz
  • Channels 12
  • Transmission method FM, mono/stereo
  • Frequency response 40 - 16000
  • Audio output 3.5 mm TRS
  • Minimum connected impedance 16 Ohm(s)
  • Max. audio output level 33 mW @ 16 Ohm mW, 80 mW @ 33 Ohm mW
  • Antenna connector Fixed to housing
  • Controls Down, On / Off, Up, volume
  • Indicators Multifunctional OLED-Display, RF (LED)
  • Power supply 2 x 1.5 V AA
  • Operating time < 10 hours
  • Width 64 mm
  • Height 100 mm
  • Depth 24 mm
  • Weight 0,095 kg
  • Accessories (included) 2 x AA batteries, Antenna
  • Features battery status LED

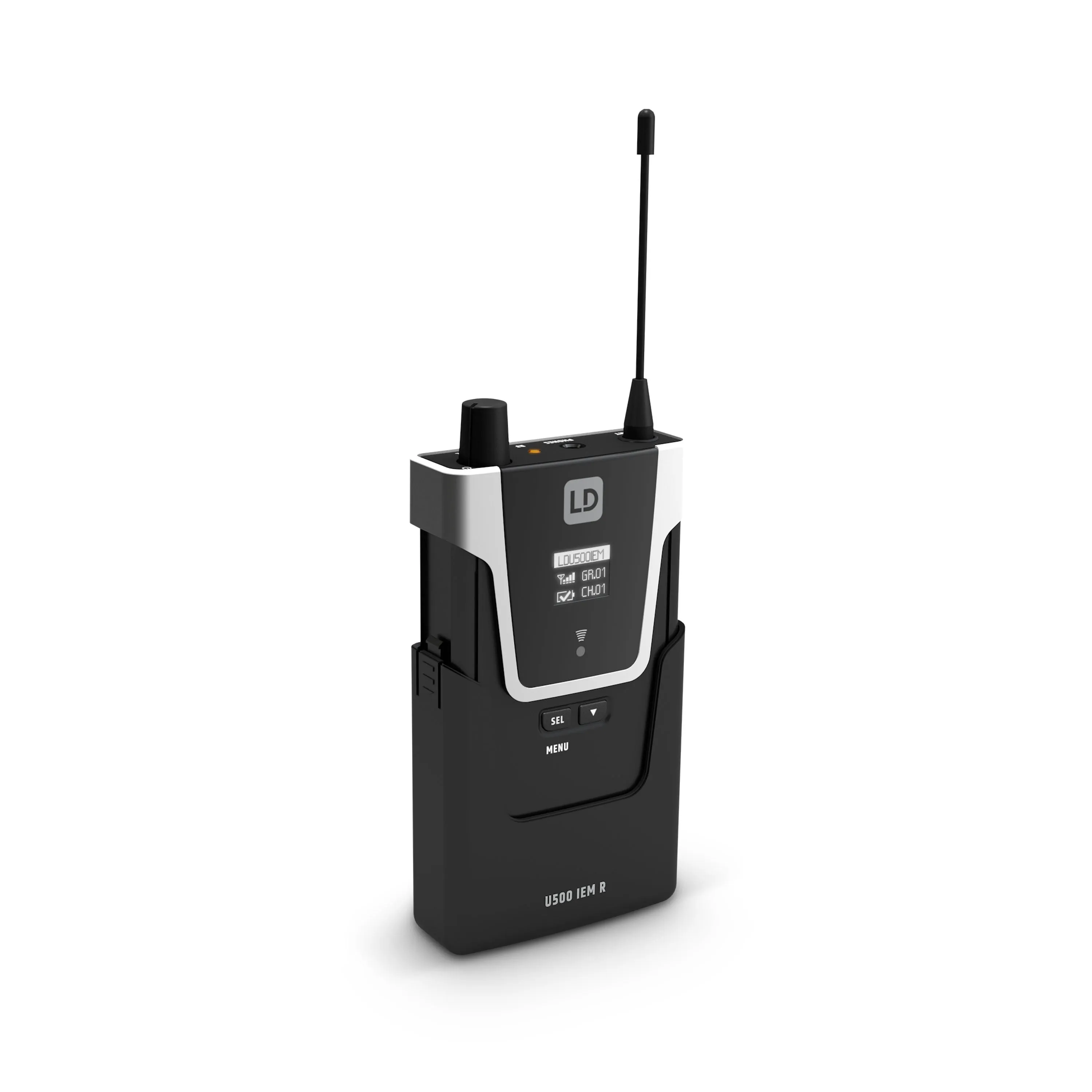

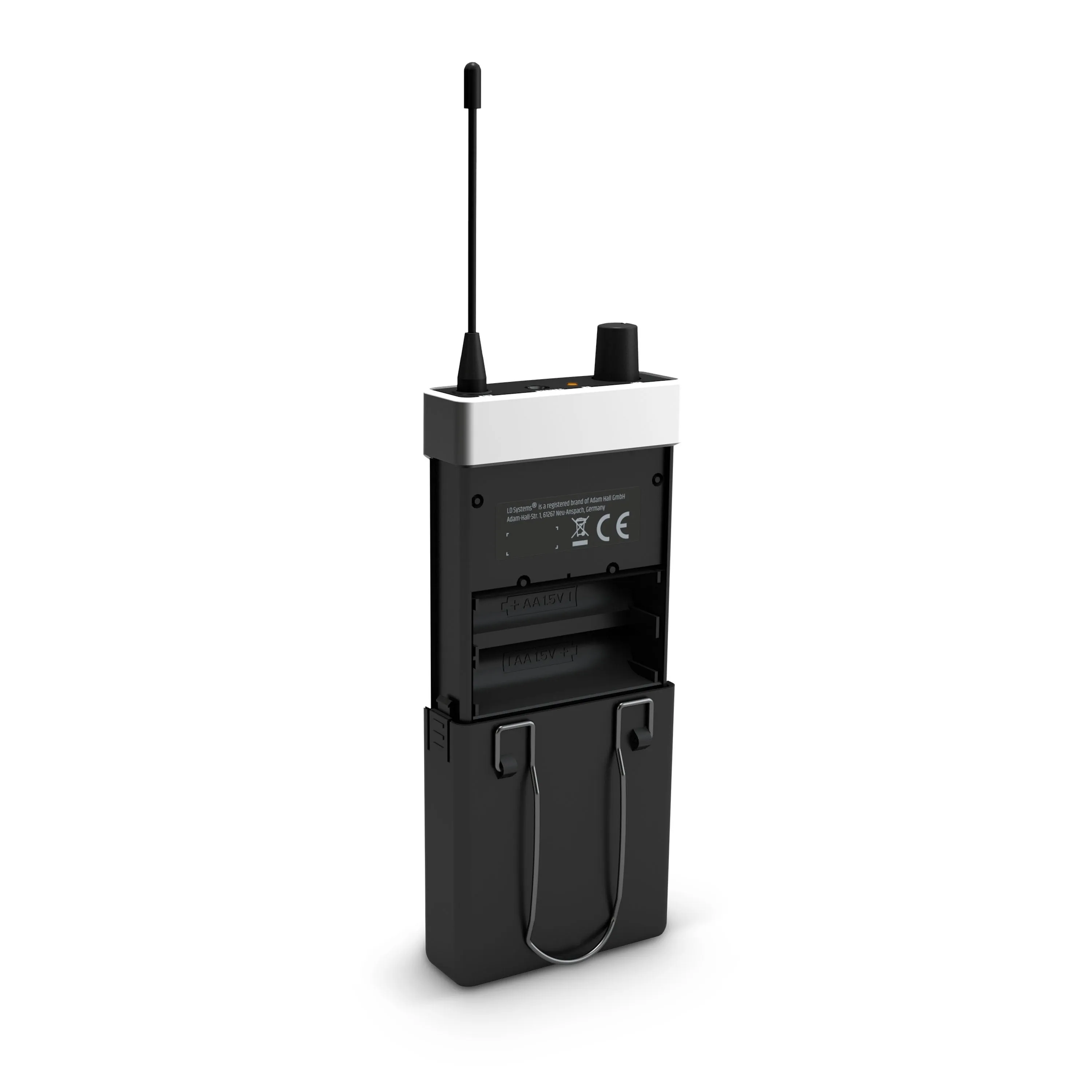

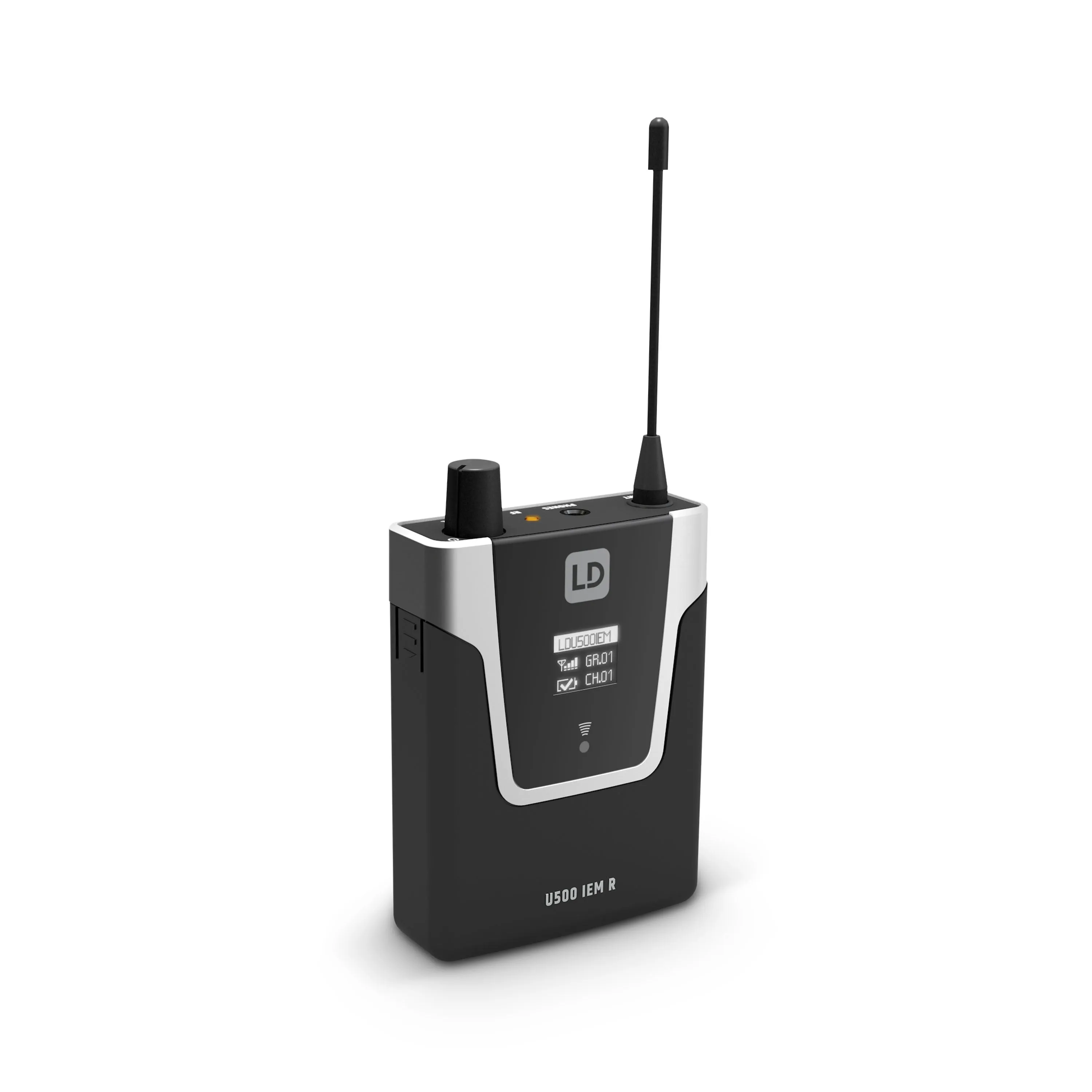

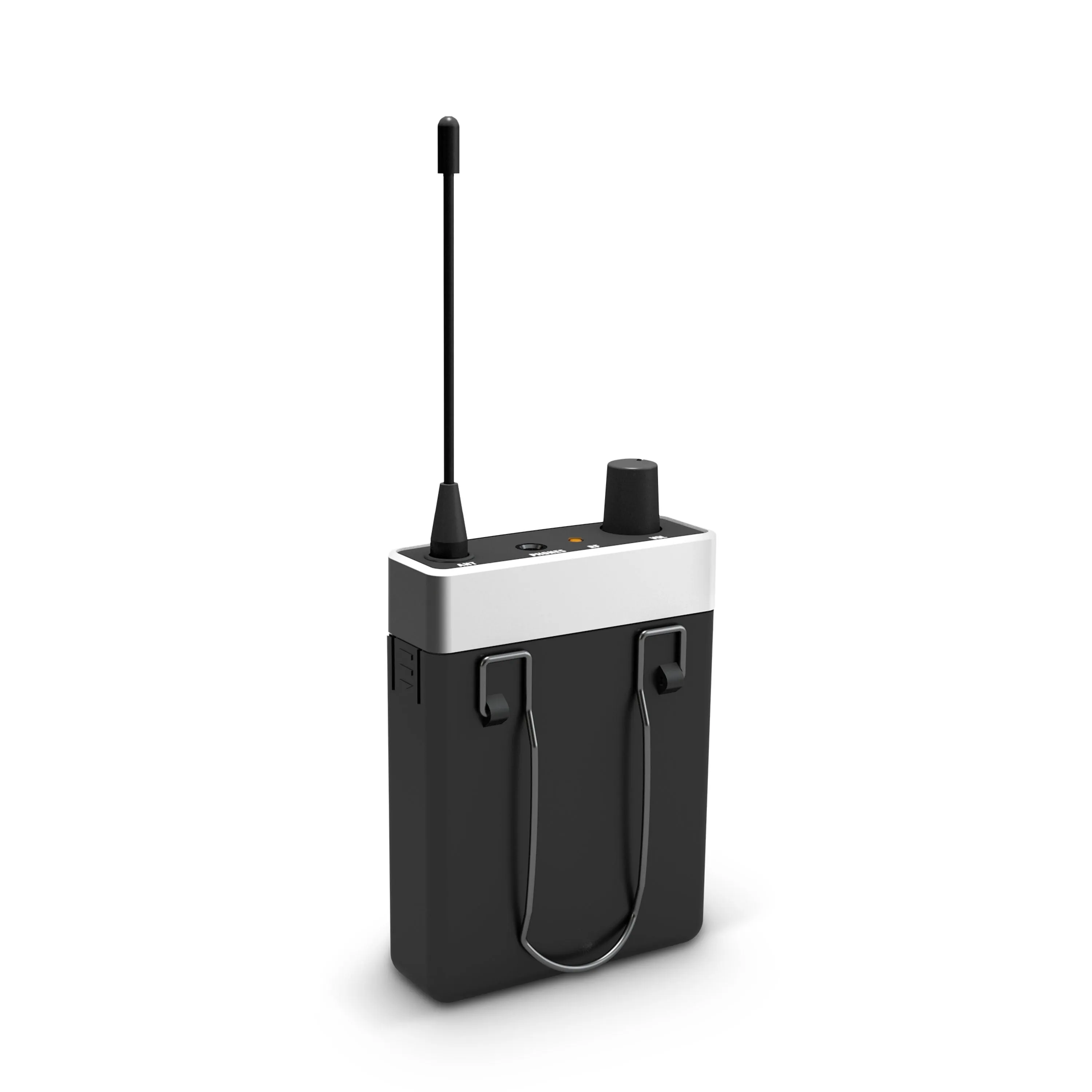

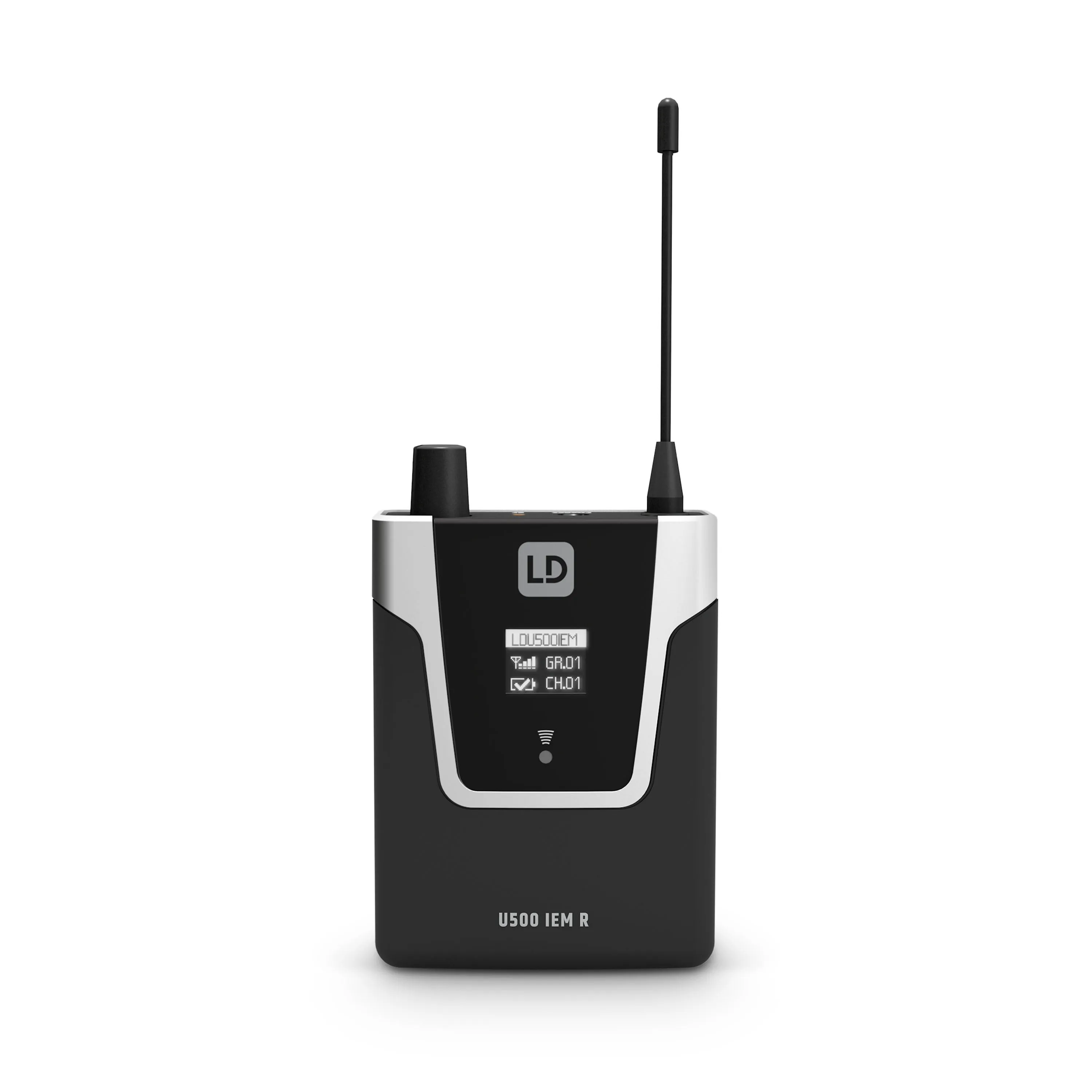

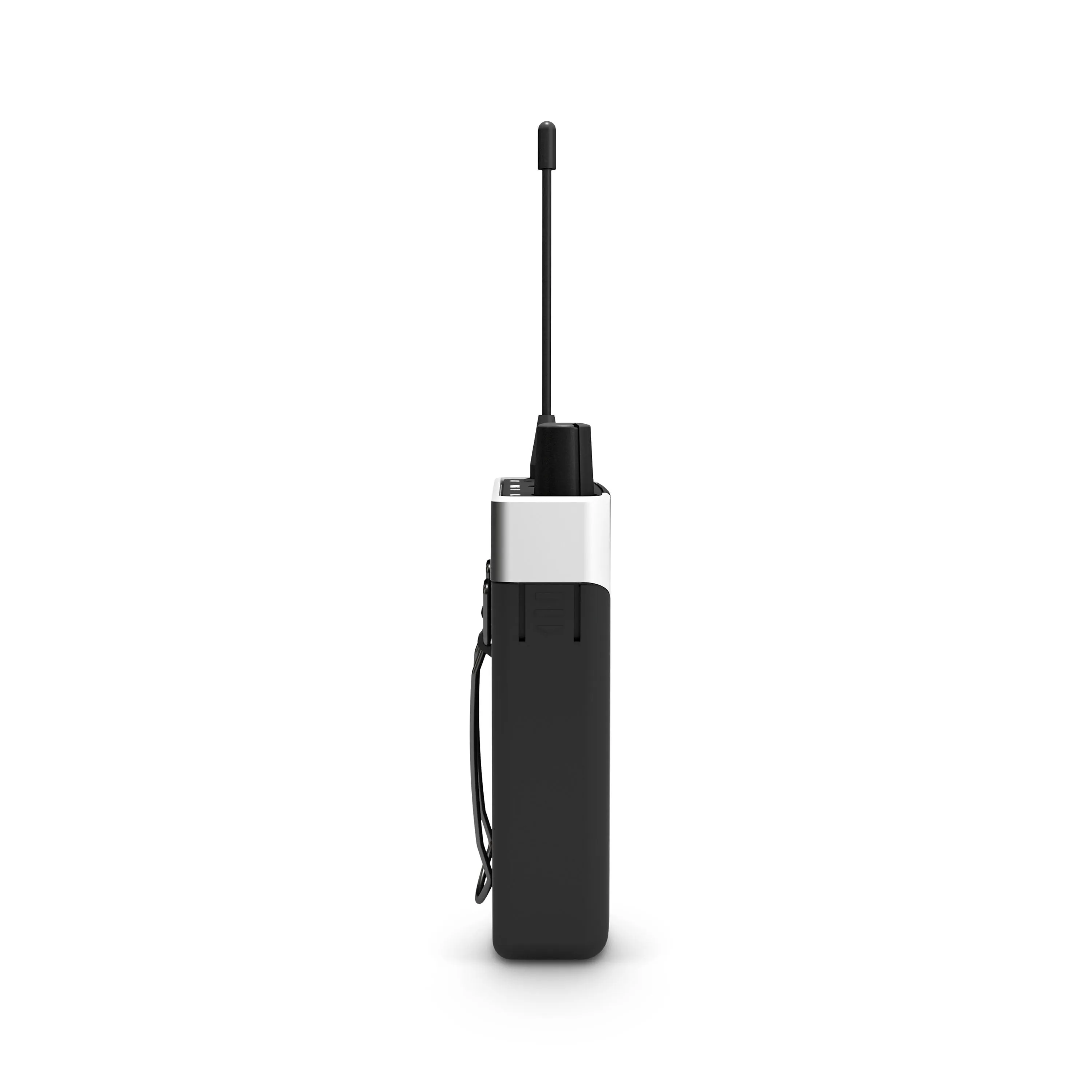

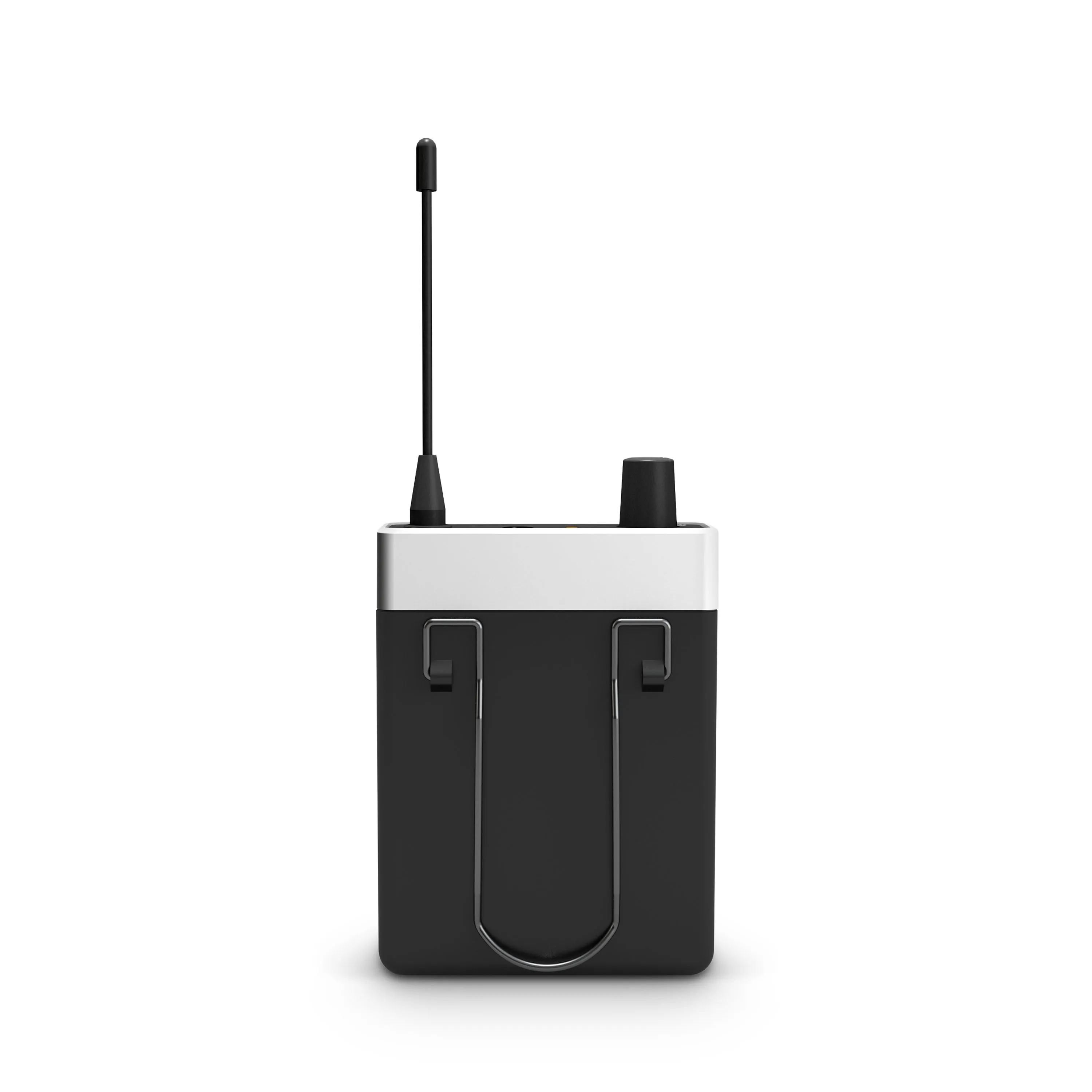

LD Systems U500 IEM In-Ear Monitoring Receiver
  • DefaultTitle

$ 63.28

$ 48.68
