NOTE:- We might take 4 to 8 days to ship this product.

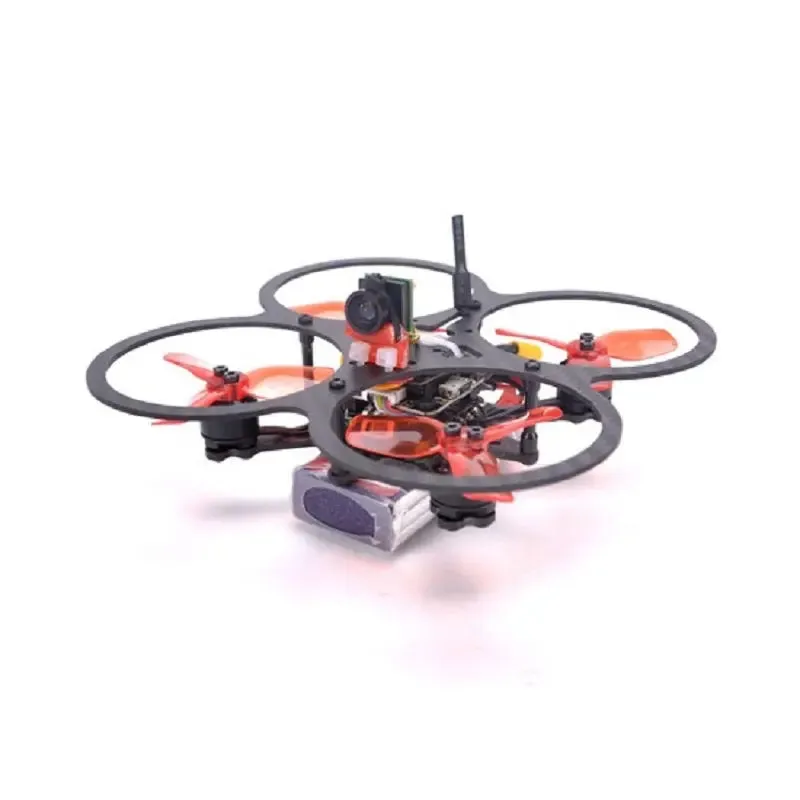

This Mini MD90 90mm Racing Drone with Mini Flytower F3, Drone Power Combo Set is the best low-price drone motors and accessories combo set available in the market.
If you are about to have a great flying drone or quadcopter designed all by you. OKAY GREAT, But having a limited budget ??
Then here is the best deal for you!!!!
It is a pack of Mini F3 or F4 flytower Flight controllers with a 5.8G 25mW Transmitter, 600TVL 170-degree color video mini camera with mic audio, 1104 7500kv motor, and MD90 Frame Kit with 2030 red propeller.
Note: This product doesn’t come with a transmitter and receiver you have to purchase it separately.
Features:
600TVL 170 degrees colour video mini camera with mic audio
48 wireless channel transmitter
7500KV Brushless Motor
Microsize and lightweight
Easy installation for racing drone
Package Includes:
1× MD90 Frame Kit
1× set mini F3 or F4 Flytower Flight Controller
1× 5.8G 25mW Transmitter
1× 600TVL camera
4× 1104 7500kv motor
4× 2030 red propeller
Specification:-
| Transmitter | Support video format: PAL |
| Output Impedance: 50 Ohm | |
| Output signal strength: 13±1dbmdBm | |
| Output Power: 25mW | |
| Wireless Channel: 48CH | |
| Operating voltage: 5v | |
| Current: 100mA | |
| Frequency : 5 BAND 48CH 5645 ~ 5945 MHz | |
| 600TVL Camera: | Horizontal Resolution: 600TVL |
| Minimum illumination: 0LUX(LED ON) | |
| S/N ratio ≥48dB | |
| Gama:0.45 | |
| Frame speed: 50f/s(PAL) | |
| White balance: Auto | |
| Audio out: Monophonic | |
| Video out: 1.2Vp-p 75Ω CVBS | |
| Image color: Color | |
| TV format: PAL | |
| Lens: 1.8mm Wide view angle 170 Degree | |
| IR Distance:1-3 Meters | |
| Working temperature: -10~ 50Degree C | |
| Input power : 5V(Module)/DC9-12V(With step-down AV cable) | |
| Power consumption:120mA | |
| Mini 1104 7500KV Brushless Motor: | KV: 7500KV |
| Motor size: diameter 14*12.5 | |
| Stator Diameter: 14mm | |
| Stator Length: 12.5mm | |
| Shaft Diameter: 1.5mm | |
| Motor Dimensions(Dia*Len): diameter 14*12.5mm | |
| No.of Cells(Lipo): 2-3S | |
| Max Continuous Current(A): 3.5A | |
| Max Continuous Power(W): 38.9W | |
| MD90 frame: | Wheel Base: 90mm |
| Weight: about 19g | |
| Upper Board Thickness: 1.5 mm | |
| Bottom board Thickness: 2mm | |
| Shipping Weight | 0.155 kg |
| Shipping Dimensions |
