Product Details
＋
Specs
Model:
SDC-24
Item #:
145917
Tool Weight:
3.5 lbs.
Tool Length:
8.25
Tool Width:
3.33
Tool Height:
5.125
Output VDC:
DC24V, 5A
Input VAC:
AC120VC, 60Hz

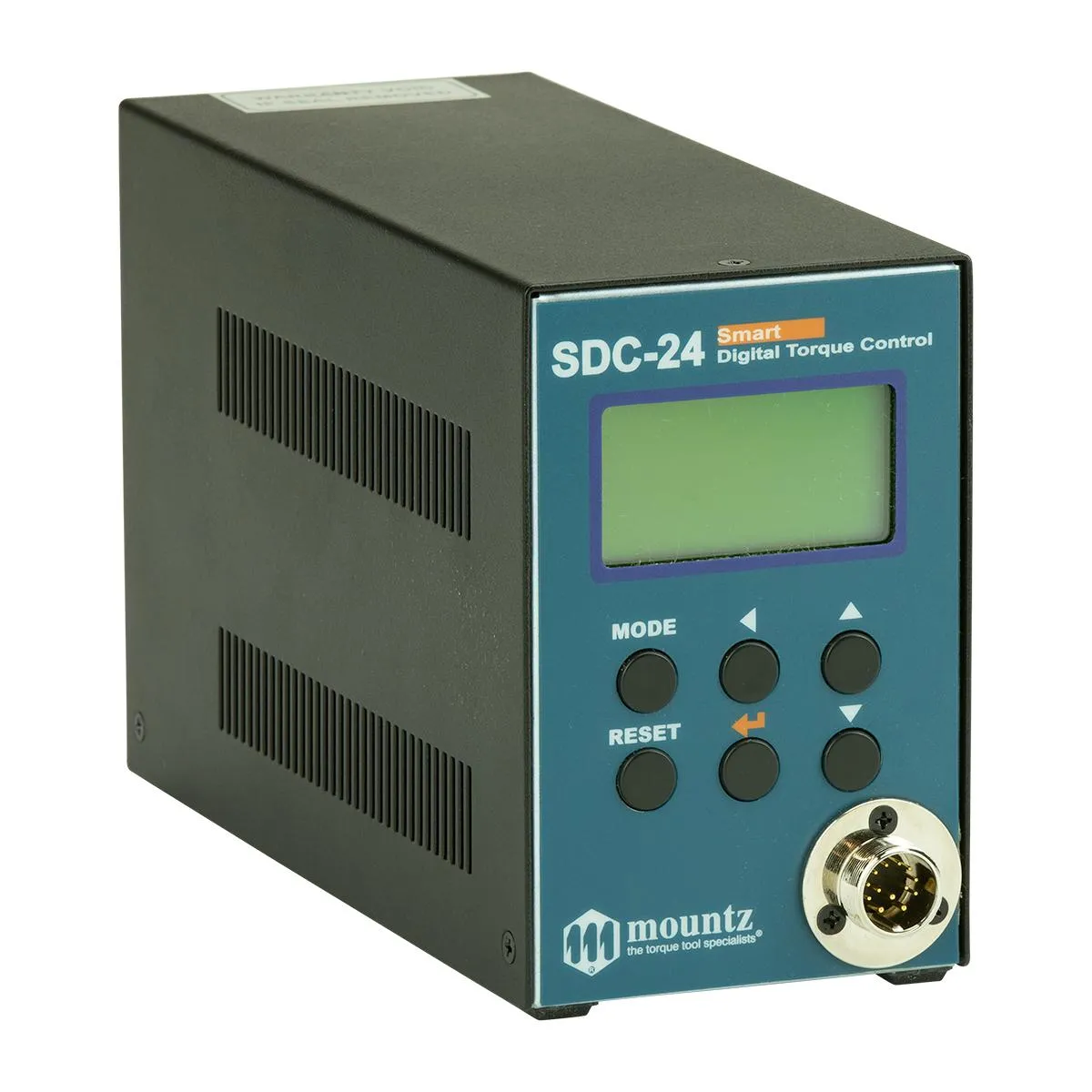

The SDC controller operates with only the SD-Series electric screwdrivers. It is a single tool controller that offers programmable speed, angle and soft start options. I/O interface for communication with external devices such as PLC.
- Preset selection capability: Front panel or 25P I/O
- Angle Control: 0.1 - 10 turns
- Preset Parameters: Torque, Speed, Soft Start & Angle in 8 preset numbers
- Auto detection of the connected driver: Auto detection of the offset value from the EEProm on the driver
- Error display: Error display by code no. in system, communication & pattern error group
- Fastening Quality Control: OK/NG monitoring of screw fastening by preset pattern of angle and/or time.
- PC based program for parameter settings, monitoring and real time output.
