Brand

Multispan

Product Type

Flow Controller

Product Model

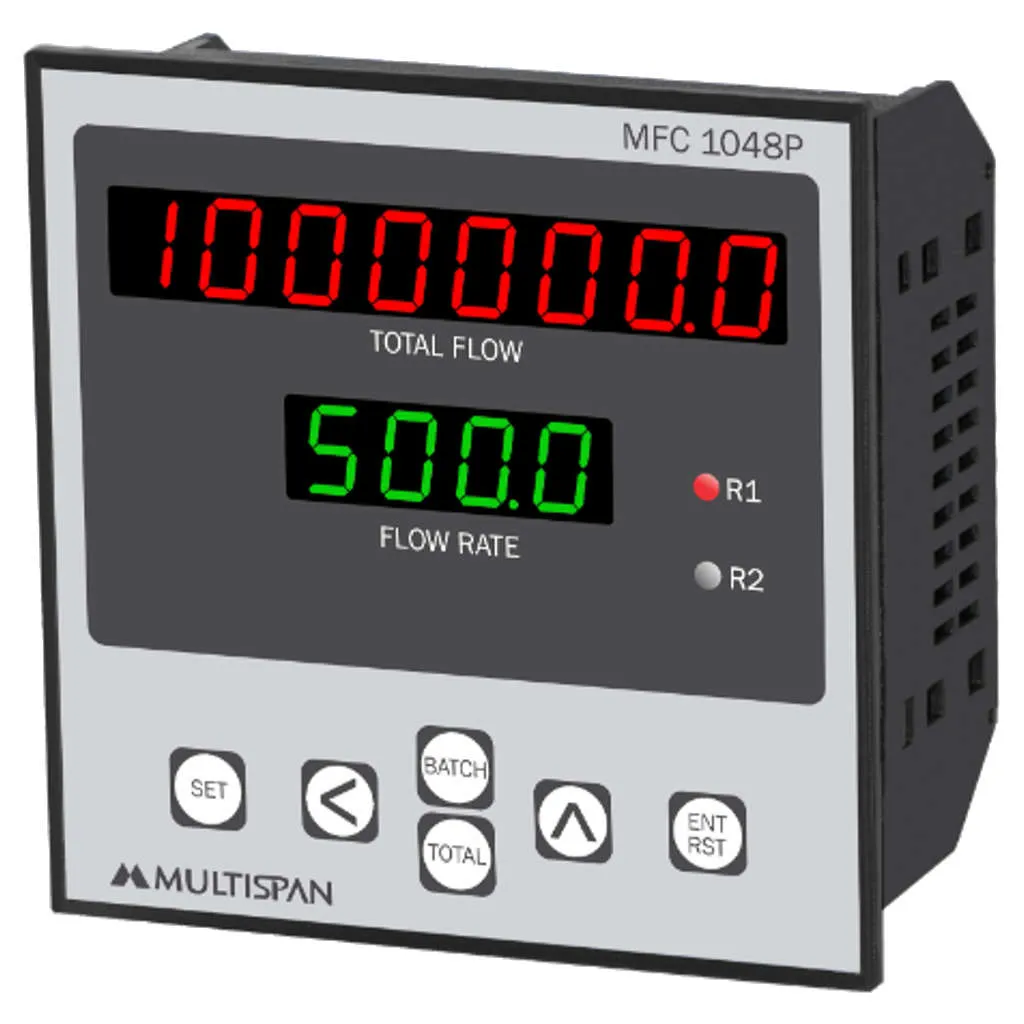

MFC-1048P

Input Specification

Input Type Current Voltage

4 to 20mA DC(Linear)

0 to 10V DC(Linear)

Pulse Input(Linear)

Accuracy

±1% of FSD

ADC Resolution

14 bits

Sample Rate

1 Second

Response Time

1 Second

Temperature Coefficent

<100 ppm

Output

Relay Control Output

2 Relays

Programmable for Flow Rate Or TotalFlow

Relay

2(NO-C-NC)

Rating

5A@230V AC/28V DC ResistiveLoad

Transmitter Supply

24V DC,30mA DC

Analog Output

Current

Isolated 4 to 20mA DC

Voltage

0 to 10V DC

Display & Keys

Display

2 line,7 segment LED display

Upper display:8 digit,0.4”

Lower display:4 digit,0.4”

RateIndication Range

Range Programmable 0-9999

Decimal Point

Adjustable

Totalizing Range

0-99999999

Keys

4 Keys:SET,UP,DOWN,ENTER,RESET

Power Supply

Standard

100-250VAC@50/60Hz

Optional

24VDC

Consumption

4VA

Environmental

Operating Temperature

0 to 55°C

Storage Temperature

0 to 70°C

Humidity

95% RH Non-condensing

Protection

IP65(FrontSide)

Communication

Type

RS485

Protocol

MODBUSRTU

Baud Rate

4800,9600,19200

Isolation

2500V Isolation as per UL1577

Physical

Mount

Panel

Enclosure

Molded ABS
