Product Details
＋
Description
Description

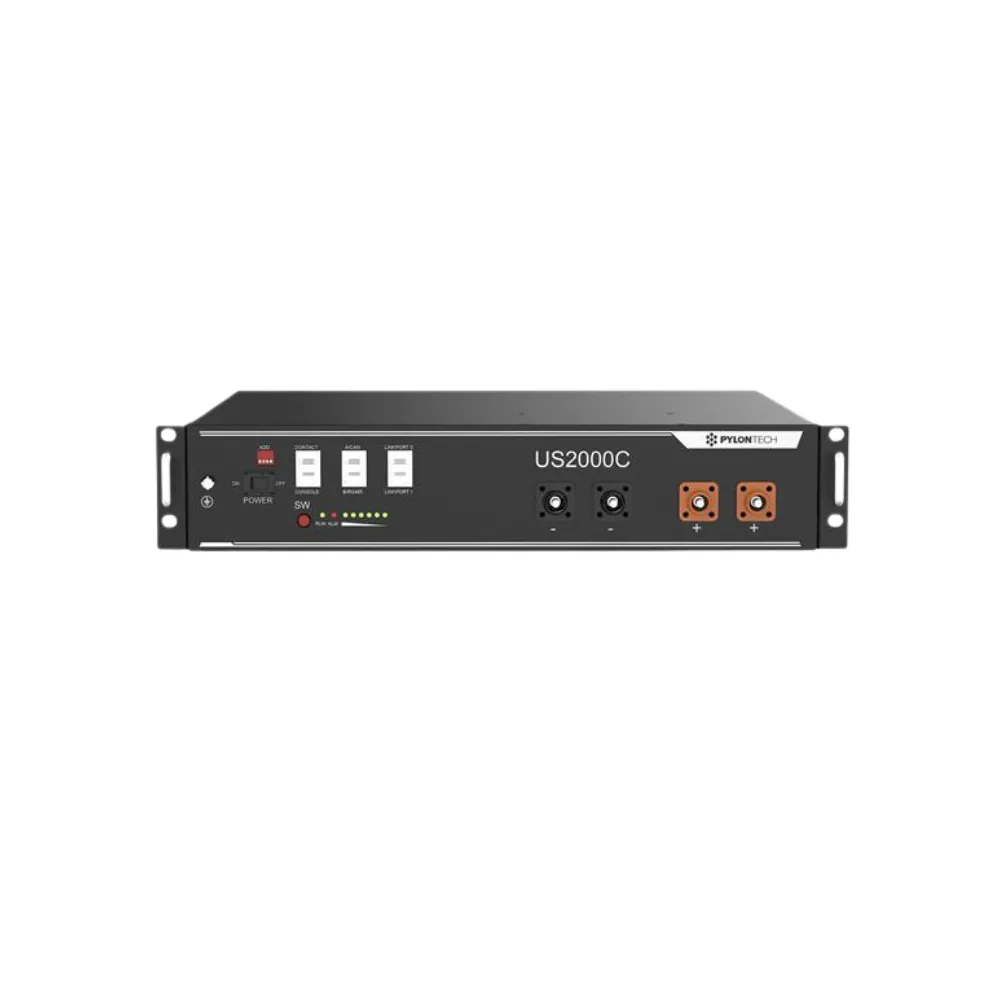

The US2000C series is an ideal solution for residential storage applications. It has a standard 48V/50AH specification, up to 95% usable capacity, and a 6,000-cycle-life warranty, with a compact, stylish design that fits any home. The battery delivers up to 5kW with a single module (2.4kWh). 10 Year Warranty

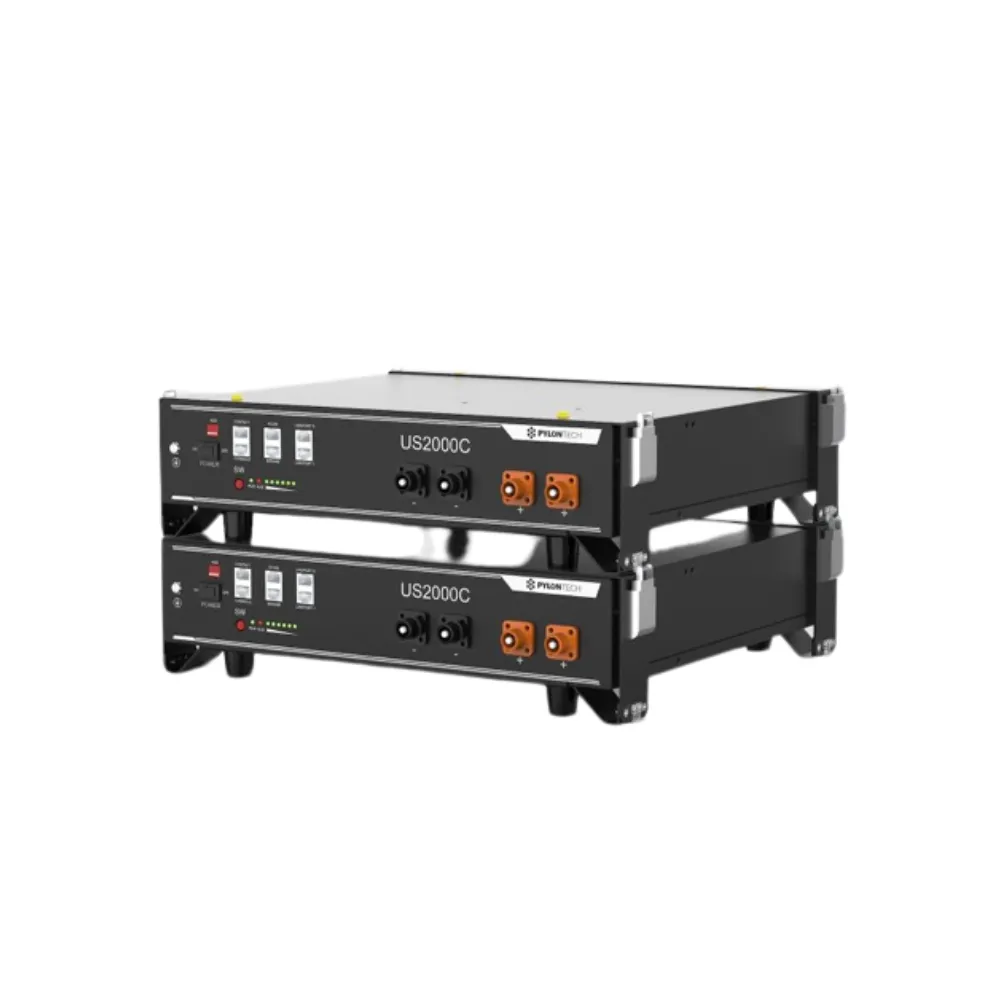

The module design allows adding additional batteries to provide greater storage capacity easily. Compatible with most of the available Hybrid Inverters. Safety Cert.TüV CE UL UN38.3.
Pylontech US2000C Lithium Battery Features Include
- Compact Size for Space-Saving
- Optimal Performance- long cycle life and superior performance
- Reliable Performance - design life 15 years
- 95% DOD with a more usable capacity
- Safety - Multi-protection from self-developed BMS (Battery Management System)
- Easy Installation
- Compatible with most inverters
- Modular design makes it easy to scale up
- 10-year warranty
Specifications
Specification
| Feature | Specification |
| Nominal Voltage (V) | 48 |
| Nominal Capacity (Wh) | 2400 |
| Usable Capacity (Wh) | 2280 |
| Dimensions (mm) | 442*410*89 |
| Weight (kg) | 22.5 |
| Short current/duration time | <4000A/2ms |
| IP rating of enclosure | IP20 |
| Charge/ Discharge Current (A) | 25 (Recommend) |
| 25 (Max Continuous) | |
| 50~89@60sec (Peak 1), 90~200@15sec (Peak 2) | |
| Communication Port | RS485, CAN |
| Single string quantity(pcs) | 16 |
| Working Temperature/℃ | 0~50 (Charge) -10~50 (Discharge) |
| Shelf Temperature/ć | -20~60 |
| Humidity | 5%~85% (RH) No Condensation |
| Altitude (m) | <4000 |
| Design life | 15 Years(25ć/77℉) |
| Cycle Life | >6000, 25℃ |
| Authentication Leve | UL1642/IEC62619/ICE63056/ICE61000-6-2/3 /UN38.3 |
Pylontech Lithium Batteries, The Latest Home Energy System
- Modular design maximising energy storage flexibility
- Lithium Iron Phosphate Cell (LFP) inside, enable a very safe and a long-life battery.
- The quick connector saves installation time.
- Furniture-like design suits both indoor and outdoor installation
- Compatible with the majority of Inverters available.
About Pylontech
Pylontech Technologies Co. Ltd
As the leading vertically integrated manufacturer of Lithium Iron Phosphate Battery Systems, thanks to their self-developed core technology in cells/BMS/system design, Pylontech has delivered more than 1.5GWH batteries serving 90,000 users.
Advantages of Vertical Integration Chain
- Developed with their own LFP (lithium iron phosphate) cell to ensure safety of the highest standards.
- Self-designed BMS system protects the cell from events such as: abnormal temperature, current,
voltage, SoC, SoH - Vertical industry integration ensures more than 6000 cycles with 90% DoD
- Modular design gives the end customers the power to choose capacity
- Compatible with most of the available Hybrid Inverters
- Simple buckle fixing to minimize the installation time and cost
