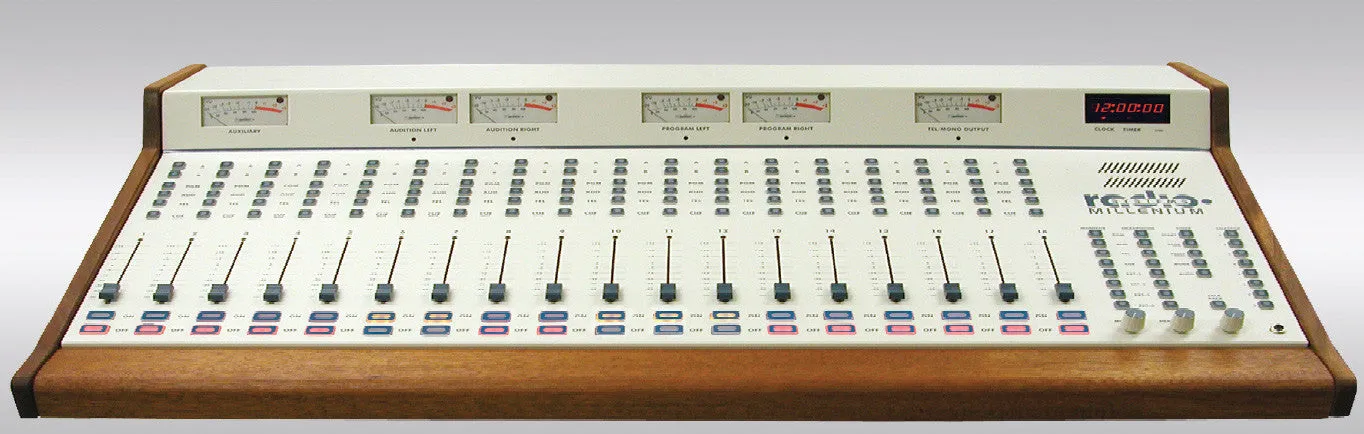

The RS Series Consoles have been known for their superb value since we introduced them 22 years ago, and we've sold thousands of them. Today, Radio Systems' Millenium Series carry on this tradition with enhanced capabilities and dramatic new styling. They offer a dazzling combination of superior specifications, user flexibility, and a wide range of features for surprisingly low prices!
Each channel on every console provides 3 output buses, which can be selected simultaneously for simulcast and mix-minus applications. The channel on/off keypad switches control channel audio as well as all logic and control states. An accurate time-of-day clock and event timer (which also slaves to the Radio Systems' CT-Clock System) is included in every console. The 8-position switcher is a standard console feature which can be be utilized to remotely control any external device or as the controls for the optional four source audio switcher or intercom selector card. Full metering with programmable LED peak indicators is provided on every model as well.
- Full metering with programmable LED peak indicators
- 8 position switcher for external devices
- 3 output buses from every channel
- Complete monitoring section
- Cue logic is user programmable to function in several modes
- Channel on/off keypad switches are LED illuminated
- Easiest to wire and service inthe industry
- Audio Inputs:
- Type: differentially balanced instrumentation amplifiers with
- gain set jumpers and selectable input attenuators
- Level: jumper selectable gain settings to accommodate
- nominal input levels from -60 dBm to 10 dBm.
- Maximum input level: 22 dBm
- Impedance: 20K ohms or jumper selected
- Headroom: 22 dBm at any level
Line Outputs: - Type: actively balanced
- Level: adjustable 0 dBm to 10 dBm,
- maximum output 22 dBm
- Impedance: 100 ohms
- Distortion: .008% at nominal operating level,
- 20 Hz to 20 kHz, Pgm,
- Aud and Mono outputs signal to noise: 88 dB (or better)
- below 4 dBm with 0 dBv input level, 20 kHz bandwidth,
- 600 ohm source impedance (line to line) 74 dB (or better)
- below 4 dBm output with -50 dBv input level, 20 kHz bandwidth,
- 150 ohm source impedance (mic to line)
