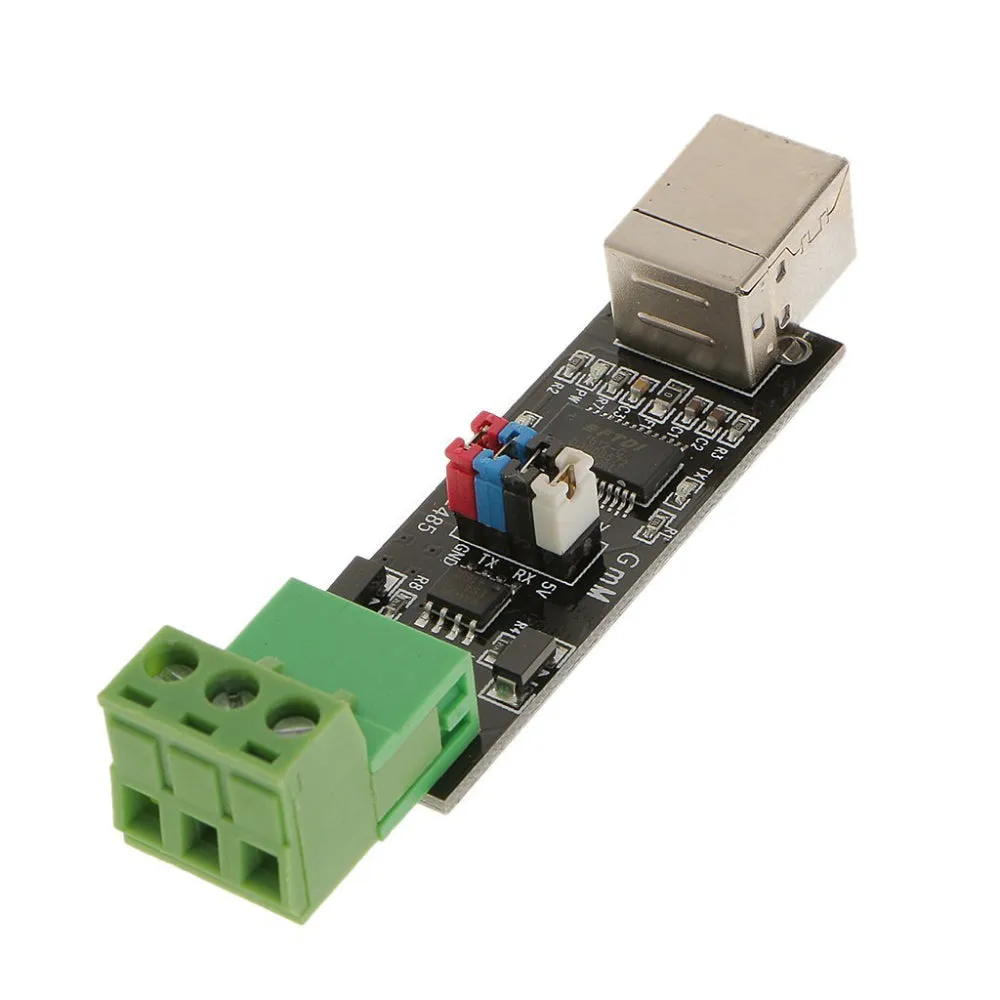

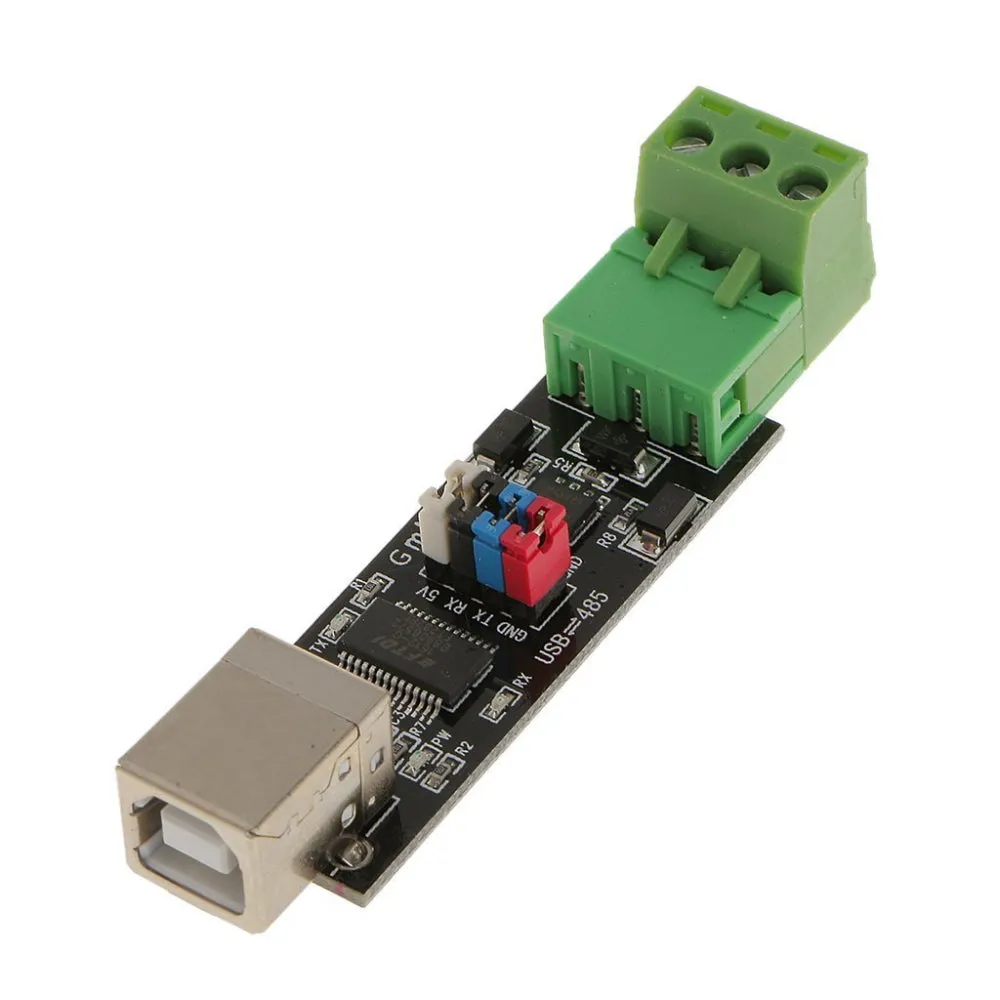

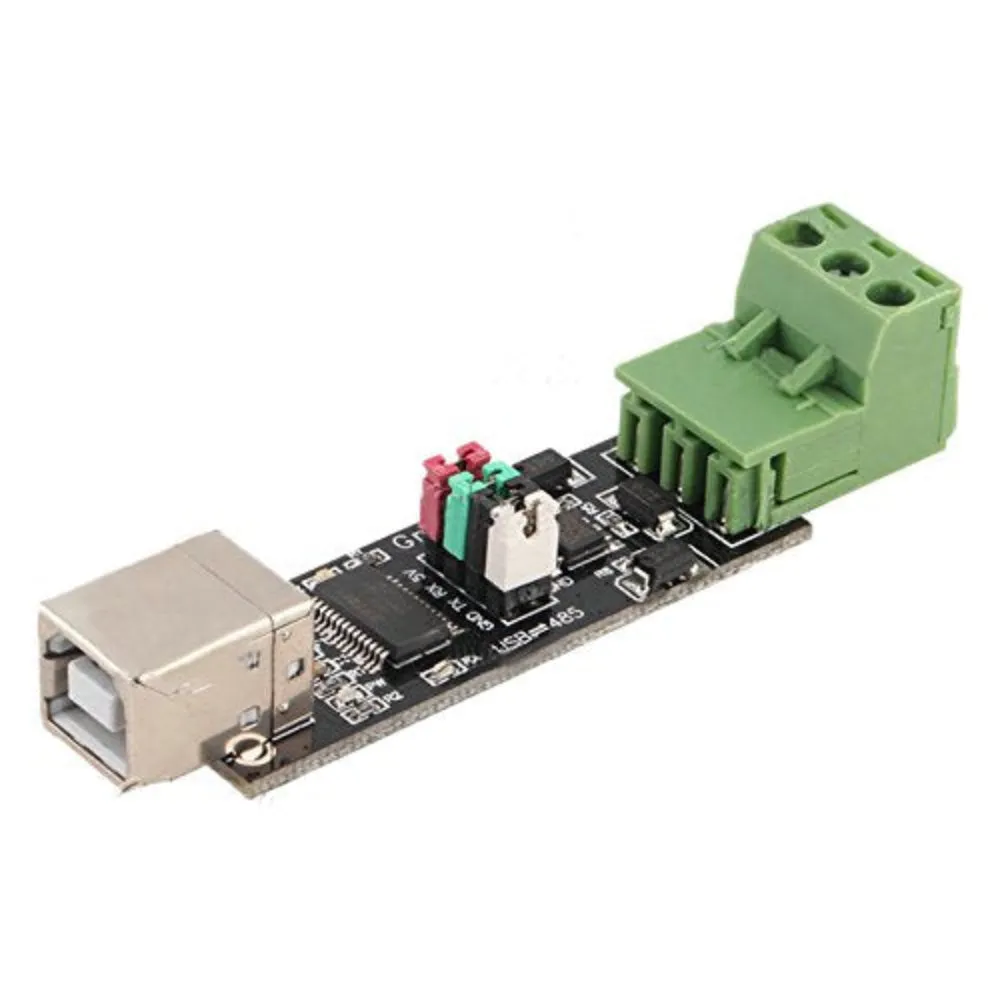

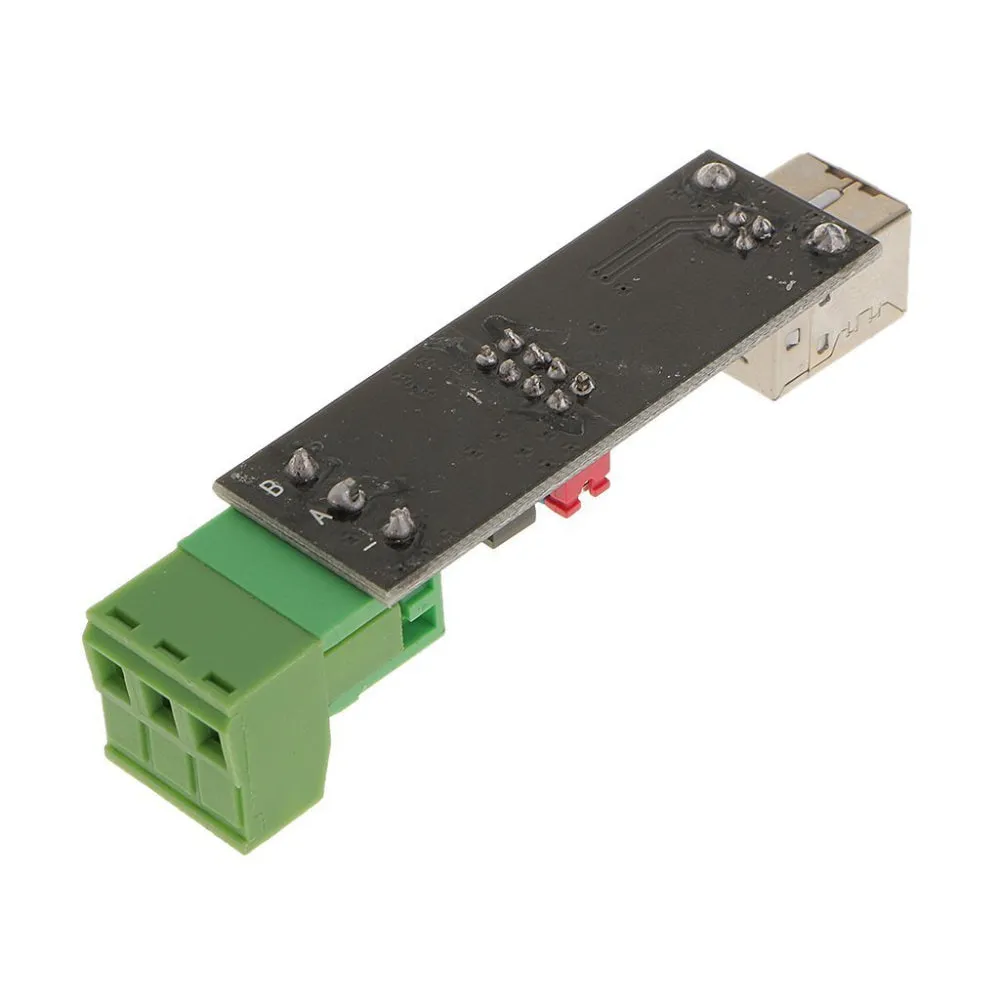

USB to RS485 TTL Serial Converter Adapter FT232

The USB to RS485 TTL Serial Converter Adapter FT232 is USB2.0 standard, backward compatible, in line with the standard RS485. It has Direction control with use of automatic data flow control, auto distinguish and control data transfer direction with Baud rate of 300-9216000bps and automatically detecting the serial signal data rate.

It supports the multipoint, each converter allows the RS485 interface device to connect 32 and comes with TVS tube Interface Protection and also with USB self-recovery protection.

This USB to RS485 TTL Serial Converter provides two-way serial communications signal conversion between the RS485 to and from a personal computer USB port using virtual serial COM port. Self-powered from USB it uses FT232RL 75176 and can have up to 32 devices on the bus.

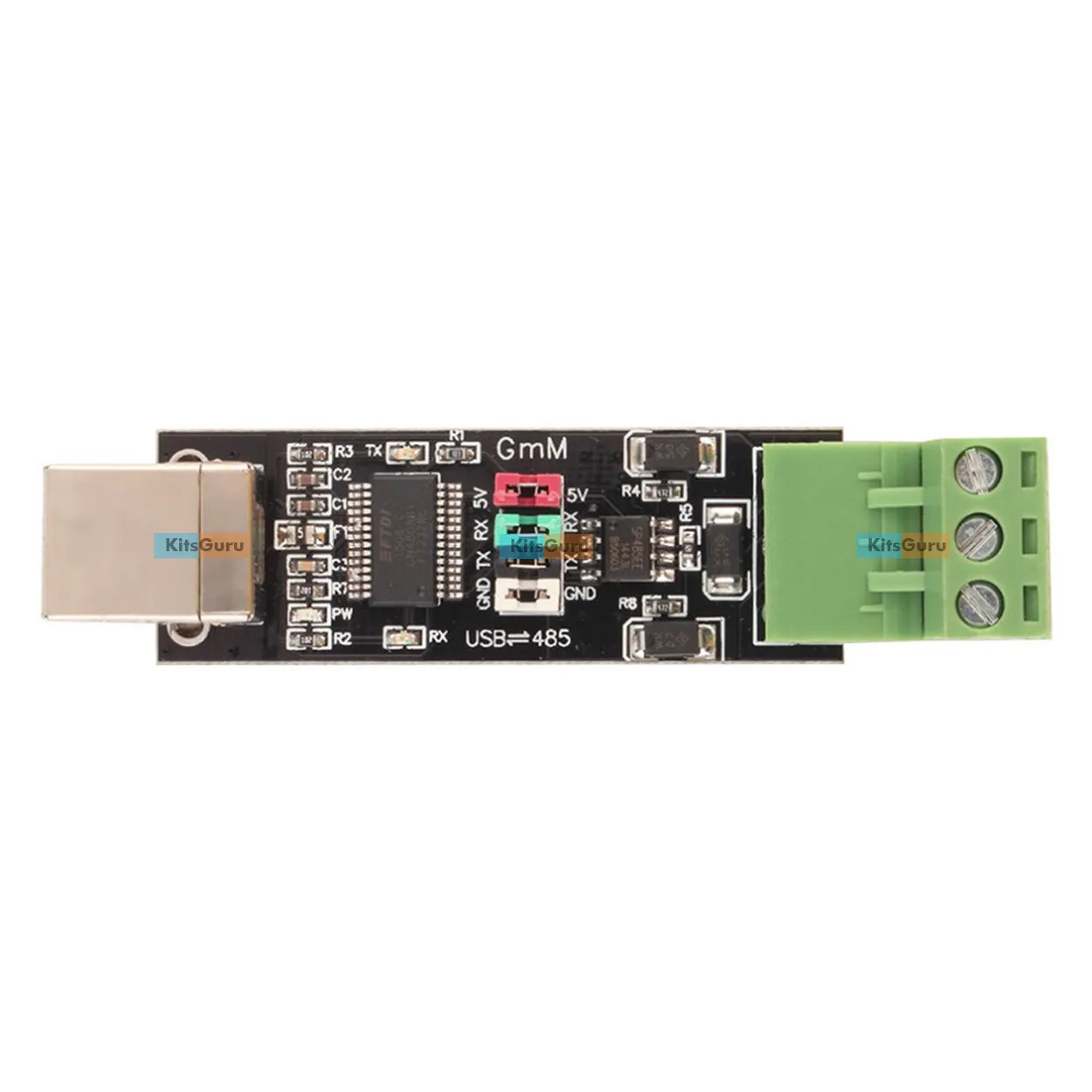

The 4 jumpers connect the USB interface to the RS485 interface. If the jumpers are removed, the USB interface may be used as a TTL Level Serial port.

Technical Details

Model Type: Converter
Baud Rate: 300 to 9,216,000 bps
Operating Temperature: -40°C to 90°C
Dimensions: 78mm (L) × 18mm (W) × 18mm (H)
Weight: 15g

Features

Load Capacity: Supports multipoint, allows up to 32 RS485 devices
Interface Protection: TVS tube protection, USB self-recovery protection
Operating System Support: Windows 98/ME/2000/XP/WIN7/Vista, Linux, Mac
Power Source: Self-powered from USB
Bus Capacity: Supports up to 32 devices

Applications :

Surveillance Cameras - Used for security monitoring and real-time video surveillance.
Video Capture Device - Captures and records video from cameras or other input sources.
Fingerprint Attendance Machine - Used for biometric authentication in access control and attendance tracking.
PBX (Private Branch Exchange) - Manages internal and external telephone communications in businesses.
CNC Machine - Controls machining tools with precision for automated manufacturing.
